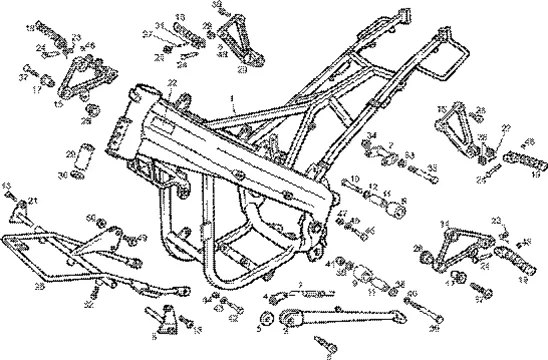

Châssis : T11 CHASSIS-BEQUILLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T11.PNG)
1 |
CHASSIS |
||||||
|
2 |
Support |
||||||
|
3 |
00H00813011 - S/ENSEMBLE BEQUILLE GRIS ZIRCO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/0/img/64310.jpg)
4 |
PLATE/BRACKET SPRING DE STAND OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/DERBI SENDA 2000 >/APRILIA 50 RS, RX, SX 2006 >-00H00800422 More informationQuantity required : 1 |
||||||
|
5 |
00H00801431-BUSH BUTFE STAND GPR " R " More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/3/img/64313.jpg)
6 |
SCREW MOUNTING SIDE STAND OEM DERBI 50 GPR 1997 > 2003-00H00803071 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/3/1/4/img/64314.jpg)
7 |
SPRING DE SIDE STAND OEM DERBI 50 GPR 1997 > 2001-00H00803081 More informationQuantity required : 1 |
||||||
|
8 |
00H02200481-ENSEMBLE GOUSSET LEFT FIXA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/6/1/4/img/64614.jpg)
9 |
ROULETTE GUIDE CHAIN OEM PIAGGIO GILERA 50 SMT, RCR 2006 >/APRILIA 50 SX, RX 2006 >-00H01801771 More informationQuantity required : 1 |
||||||
|
10 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/1/img/63631.jpg)
11 |
SPACER GUIDE CHAIN OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA/APRILIA SX, RX 2017 <-00002518790 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/3/9/img/63639.jpg)
12 |
00003306570 - RONDELLE FIX BOITE A OUTILS More informationQuantity required : 1 |
||||||
|
13 |
00000012620 - VIS More informationQuantity required : 1 |
||||||
|
14 |
00H00104673 - SUPPORT DT More informationQuantity required : 1 |
||||||
|
15 |
SUPPORT DT |
||||||
|
16 |
SUPPORT AR. SX GPR50 |
||||||
|
17 |
00H01500171 - DOUILLE FIXATION SUPPORT FTRIE More informationQuantity required : 1 |
||||||
|
18 |
ETRIER DROITE GPR-50"R" |
||||||
|
19 |
00H01502451-FTRIER LEFT GPR-50 " R " More informationQuantity required : 1 |
||||||
|
20 |
SUPPORT DR. |
||||||
|
21 |
SUPPORT |
||||||
|
22 |
PLAQUE FABRICANT GPR-50 R |
||||||
|
22 |
PLAQUETTE |
||||||
|
23 |
00H04901291 - RESSORT FIXATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
|
24 |
00H04901311 - AXE ARTICULATION FTRIER GPR-50 More informationQuantity required : 1 |
||||||
|
25 |
00H04901181 - S/ENSEMBLE SUPPORT INSTRUMENTS More informationQuantity required : 1 |
||||||
|
26 |
00H04901401 - BLOC SUPPORT ETRIER GPR- More informationQuantity required : 1 |
||||||
|
27 |
SUPPORT |
||||||
|
28 |
SUPPORT |
||||||
|
29 |
00H06300401-TUBE SEPARATION BEARING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/4/8/img/65048.jpg)
30 |
WASHER COUSSINET TUBE STEERING OEM PIAGGIO 50 A BOX-00H06500451 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/0/8/img/63608.jpg)
31 |
BILLE DIAMETRE 6 OEM PIAGGIO COMMON A LA RANGE-00000061061 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/6/8/img/63568.jpg)
32 |
SCREW TH (5X12) OEM PIAGGIO COMMON A LA RANGE-00000004512 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/5/2/7/img/64527.jpg)
33 |
WASHER PLATE (12. 2X24X1) OEM PIAGGIO COMMON A LA RANGE-00H01500421 More informationQuantity required : 1 |
||||||
|
34 |
00000023120 - ECROU IDESSERABLE 12M150 More informationQuantity required : 1 |
||||||
|
35 |
00004111000-SCREW C/ALLEN 12M150X100. D-912. More informationQuantity required : 1 |
||||||
|
36 |
00000004820-BOLT HEAD HEX. 8M125X20 More informationQuantity required : 1 |
||||||
|
37 |
00000013840 - VIS AVANT ALLEN 8M125X40. D-79 More informationQuantity required : 1 |
||||||
|
38 |
00H00500211 - RONDELLE More informationQuantity required : 1 |
||||||
|
39 |
VIS |
||||||
|
40 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/1/5/img/63715.jpg)
41 |
NUT AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-00023108000 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/4/8/img/64748.jpg)
42 |
SCREW BTR (10X100) OEM PIAGGIO COMMON A LA RANGE-00H03000272 More informationQuantity required : 1 |
||||||
|
43 |
RONDELLE |
||||||
|
44 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/0/4/img/64704.jpg)
45 |
SCREW BTR (8X90) OEM PIAGGIO COMMON A LA RANGE-00H02500272 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/6/img/63786.jpg)
46 |
WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001 More informationQuantity required : 1 |
||||||
|
47 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/3/6/img/63736.jpg)
48 |
CLIPS SHAFT OF HATCH A FUEL OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 >/APRILIA 50 SX, RX-00047030400 More informationQuantity required : 1 |
||||||
|
49 |
|
||||||
|
50 |
00026006000 - ECROU 6M100. More informationQuantity required : 1 |
