Vehicle Exploded View - GILERA GPR 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

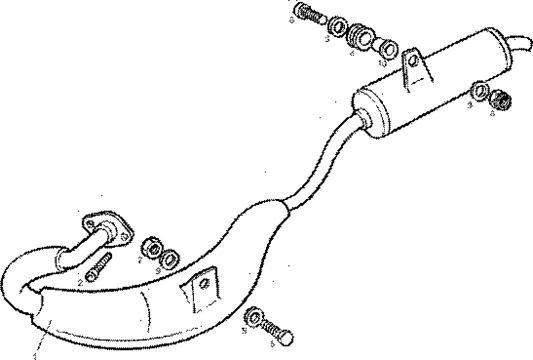

Châssis : T9 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/670/GPR_50_1998-2005_T9.PNG)
1 |
00H03416601 - ENSEMBLE TUBE D'ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
00000004620 - VIS T. CREUSE 6M100X20. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/7/6/img/63876.jpg)
3 |
WASHER PLATE (6X15) OEM PIAGGIO COMMON A LA RANGE-00D01200171 More informationQuantity required : 1 |
||||||
|
4 |
PORTE CABLE |
||||||
|
5 |
|
||||||
|
6 |
VIS |
||||||
|
7 |
Ecrou |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
8 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
|
9 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/5/8/img/63958.jpg)
10 |
BUSH EN T (D6) OEM PIAGGIO COMMON A LA RANGE-00G01001821 More informationQuantity required : 1 |
