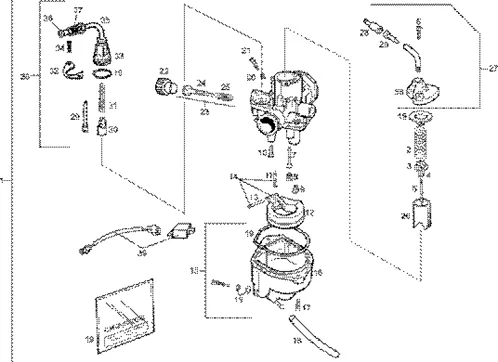

Vehicle Exploded View - GILERA GPR 50 1998-2005

	P2R reference	64777
	Maker reference	00H03224011

00H03224011 - ENSEMBLE CARBURATEUR.

	P2R reference
	Maker reference	00H03240011

CARBURATEUR GPR 00 WVTA

	P2R reference
	Maker reference	00H03201071

R-RESSORT VALVE ESS.

	P2R reference	64757
	Maker reference	00H03202071

00H03202071 - R-RESSORT VALVE ESS.

	P2R reference	66205
	Maker reference	288873

BUSH OF GUIDAGE AIGUILLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC-288873

	P2R reference	66204
	Maker reference	288872

CIRCLIPS D'AIGUILLE OF CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER-288872

	P2R reference	64077
	Maker reference	00G03201431

CARBURETTOR NEEDLE OEM PIAGGIO GILERA 50 SMT, RCR, GSM, HAK X000D, GPR 1998 > 2004-00G03201431

	P2R reference
	Maker reference	00H03204431

R-AIGUILLE PULVERZ.

	P2R reference	64071
	Maker reference	00G03200061

00G03200061-R-BOUL. SER. COUV. CHAMBRE MEL

	P2R reference	73089
	Maker reference	CM106217

CM106217-MELANGEUR 211-GA

	P2R reference	64765
	Maker reference	00H03205421

00H03205421 - PULVERISATEUR

	P2R reference	64773
	Maker reference	00H03210031

00H03210031 - GICLEUR PRINCIPAL 98

	P2R reference	64774
	Maker reference	00H03211031

00H03211031 - JET MAX.69 GPR50R FR.

	P2R reference
	Maker reference	ODN00G04103181

GICLEUR STARTER

	P2R reference	73070
	Maker reference	CM102107

CM102107 - GICLEUR STARTER

	P2R reference
	Maker reference	ODN00H03201481

GICLEUR STARTER

	P2R reference
	Maker reference	ODN00H03202051

POINTEAU

	P2R reference
	Maker reference	00H03202281

R-FLOTTEUR.

	P2R reference
	Maker reference	00H03202281

R-FLOTTEUR.

	P2R reference	66625
	Maker reference	482916

FLOTTEUR, POINTEAU ET SHAFT OF CUVE FOR CARBURETTOR OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 2T-482916

	P2R reference	64764
	Maker reference	00H03205201

00H03205201 - ENSEMBLE CUVE INFER.CARBUR.

	P2R reference	69522
	Maker reference	847519

847519 - CUVE

	P2R reference	64076
	Maker reference	00G03201091

00G03201091 - R-BOUL.SERG.VASE ESSENC.

	P2R reference
	Maker reference	00H03702121

TUBE

	P2R reference
	Maker reference	ODN00G04101771

JOINT

	P2R reference	64074
	Maker reference	00G03200721

SCREW REGLAGE AIR OEM PIAGGIO COMMON A LA RANGE-00G03200721

	P2R reference	64756
	Maker reference	00H03200731

00H03200731 - R-VIS REG.AIR MIN.

	P2R reference	64114
	Maker reference	00G04100741

00G04100741-R-BUTTON SCREW REGL. VALV. ESS.

	P2R reference
	Maker reference	ODN00H04101131

VIS

	P2R reference	64113
	Maker reference	00G04100131

SCREW OF RALENTI OEM PIAGGIO 50 GILERA SMT, RCR, GSM, HAK, ZULU 1998 > 2005/DERBI SENDA 2005 <-00G04100131

	P2R reference	65751
	Maker reference	152608

SPRING SCREW AIR CARBU OEM PIAGGIO COMMON A LA RANGE-152608

	P2R reference
	Maker reference	00H03203211

BOISSEAU

	P2R reference
	Maker reference	00H03205231

KIT COUVERCLE CARBURATEUR

	P2R reference	73242
	Maker reference	CM146203

CHOKE CONTROL KIT "PIAGGIO GENUINE PART" GILERA 50 SMT 2013>2017 -CM146203

	P2R reference	64078
	Maker reference	00G03201481

00G03201481 - GLICEUR RALENTI

	P2R reference
	Maker reference	00G03202711

R-ENSEM. STARTER AUTOM.

	P2R reference
	Maker reference	00G03202721

R-RESSORT REG.AIR MIN.

	P2R reference	64073
	Maker reference	00G03200551

CHOKE PLATE "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G03200551

	P2R reference
	Maker reference	ODN00G03200391

COURBE CHOKE M30-GPR

	P2R reference	64072
	Maker reference	00G03200541

00G03200541 - R-BOULON SER.START.AUTOM.

	P2R reference
	Maker reference	00G03200761

R-TUYAU CABLE ESSEN.VAM.AU.40K

	P2R reference
	Maker reference	ODN00G03201561

COUVERCLE

	P2R reference
	Maker reference	ODN00F03200021

VIS DE REGLAGE CARBURATEUR GPR

	P2R reference
	Maker reference	ODN00G03201231

COUVERCLE

	P2R reference	65017
	Maker reference	00H06000151

00H06000151 - KIT CHAUFFE CARBURATEUR
