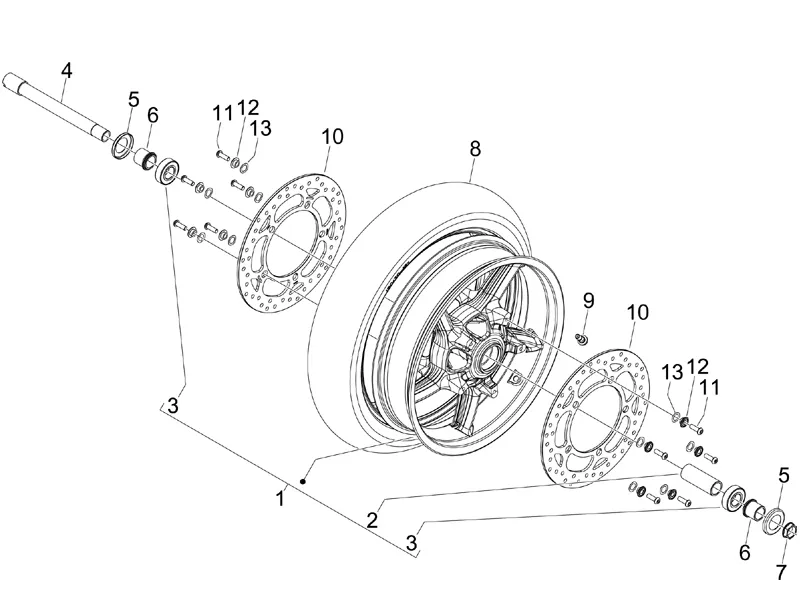

Vehicle Exploded View - GILERA GP 800 2009-2011 GILERA

Suspensions - roues : 04.11 ROUE AVANT
Roue avant
Search
666798 - ROUE AVANT

1
P2R reference P2R reference 68427
Maker reference Maker reference 666798

666798-FRONT WHEEL

More information

Quantity required : 1

600711 - ENTRETOISE

2
P2R reference P2R reference 67452
Maker reference Maker reference 600711

600711-SPACER

More information

Quantity required : 1

BEARING (25X52X15) WHEEL MAXI SCOOTER OEM GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/VESPA LX, LXV, S 125-4789845

3
P2R reference P2R reference 139412
Maker reference Maker reference 478984

BEARING (25X52X15) WHEEL MAXI SCOOTER OEM GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/VESPA LX, LXV, S 125-4789845

More information

Quantity required : 2

BEARING (25X52X15) WHEEL MAXI SCOOTER OEM GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/VESPA LX, LXV, S 125-4789845

3
P2R reference P2R reference 139412
Maker reference Maker reference 4789845

BEARING (25X52X15) WHEEL MAXI SCOOTER OEM GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/VESPA LX, LXV, S 125-4789845

More information

Quantity required : 2

600359 - AXE ROUE

4
P2R reference P2R reference 67433
Maker reference Maker reference 600359

600359-SPINDLE WHEEL *

More information

Quantity required : 1

600713-CUP

5
P2R reference P2R reference 67454
Maker reference Maker reference 600713

600713-CUP

More information

Quantity required : 2

SPACER DE FRONT WHEEL OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-600712

6
P2R reference P2R reference 67453
Maker reference Maker reference 600712

SPACER DE FRONT WHEEL OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-600712

More information

Quantity required : 2

NUT WHEEL SPINDLE REAR OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-600354

7
P2R reference P2R reference 67432
Maker reference Maker reference 600354

NUT WHEEL SPINDLE REAR OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-600354

More information

Quantity required : 1

PNEU 120 /70-R16" (DITTA MICHELIN)

8
P2R reference P2R reference
Maker reference Maker reference 497631

PNEU 120 /70-R16" (DITTA MICHELIN)

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

9
P2R reference P2R reference 67350
Maker reference Maker reference 597679

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

More information

Quantity required : 1

FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA GP 800 2009>2011/APRILIA 850 SRV 2012>2014 -651041

10
P2R reference P2R reference 68175
Maker reference Maker reference 651041

FRONT BRAKE DISC "PIAGGIO GENUINE PART" GILERA GP 800 2009>2011/APRILIA 850 SRV 2012>2014 -651041

More information

Quantity required : 2

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

11
P2R reference P2R reference 67066
Maker reference Maker reference 564606

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

More information

Quantity required : 10

BUSH FOR BRAKE DISC (FRONT)"PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650083

12
P2R reference P2R reference 68136
Maker reference Maker reference 650083

BUSH FOR BRAKE DISC (FRONT)"PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650083

More information

Quantity required : 10

WASHER SPRING (D12) OEM PIAGGIO COMMON A LA RANGE-AP8121641

13
P2R reference P2R reference 71479
Maker reference Maker reference AP8121641

WASHER SPRING (D12) OEM PIAGGIO COMMON A LA RANGE-AP8121641

More information

Quantity required : 10
