Vehicle Exploded View - GILERA GP 800 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

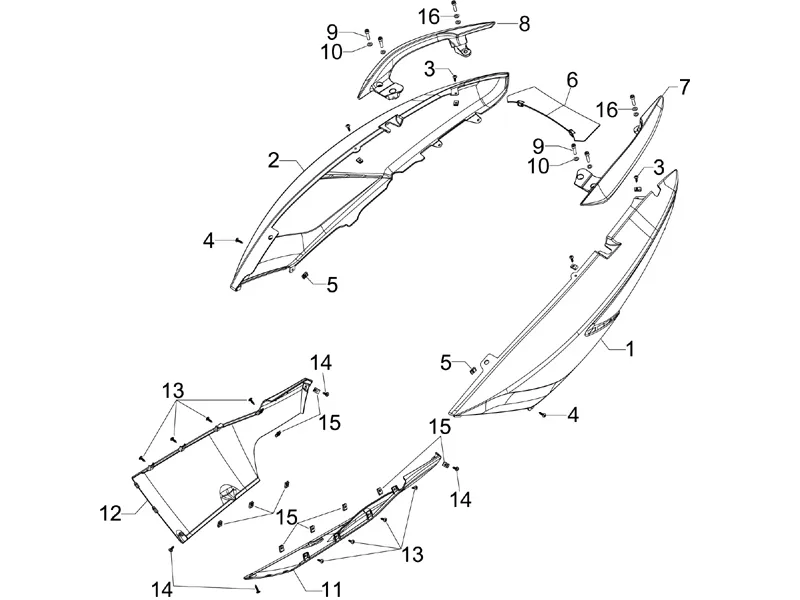

Châssis - parties plastiques - carrosseries : 02.32 COUVERTURES LATERALES - SPOILER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/175/GP_800_2009-2011-137.png)
1 |
653154-COVER FRAME More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/2/1/img/87621.jpg)
1 |
BODY PANEL/SIDE PANEL REAR LEFT OEM PIAGGIO GILERA GP 800 WHITE 544 2007 > 2011-65315400BR More informationQuantity required : 1 |
||||||
|
1 |
65315400RR - COUVRE CHASSIS GAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/2/6/img/87626.jpg)
1 |
REAR COWL -LEFT- "PIAGGIO GENUINE PART" GILERA GP 800 BLACK 98/A -65315400XN2- More informationQuantity required : 1 |
||||||
|
2 |
653155 - LATERAL AR. DRO. More informationQuantity required : 1 |
||||||
|
2 |
65315500BR - LATERAL AR. DRT. More informationQuantity required : 1 |
||||||
|
2 |
65315500RR - LATERAL AR. DRT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/3/3/img/87633.jpg)
2 |
REAR COWL-RIGHT- "PIAGGIO GENUINE PART" GILERA GP 800 BLACK 98/A -65315500XN2- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
3 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/6/img/73366.jpg)
4 |
SCREW TORX (6X16) OEM PIAGGIO COMMON A LA RANGE-CM179301 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
5 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
|
6 |
653158 - COUVERCLE FLANC SUP.BRUT More informationQuantity required : 1 |
||||||
|
6 |
65315800BR - COUVERCLE FLANC SUP More informationQuantity required : 1 |
||||||
|
6 |
65315800RR - COUVERCLE FLANC SUP More informationQuantity required : 1 |
||||||
|
6 |
65315800XN2 - COUVERCLE FLANC SUP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/4/8/img/87648.jpg)
7 |
LEFT PASSENGER HANDLE "PIAGGIO GENUINE PART" GILERA 800 GP BLACK -6531630090- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/5/0/img/87650.JPG)
8 |
GRIP PASSENGER RIGHT OEM PIAGGIO GILERA 800 GP BLACK-6531640090 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/0/img/65440.jpg)
9 |
SCREW BTR (6X25) OEM PIAGGIO COMMON A LA RANGE-018553 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
10 |
WASHER PLATE (6X12X1) OEM PIAGGIO COMMON A LA RANGE-003056 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/1/2/img/68212.jpg)
11 |
SPOILER LEFT UNPAINTED OEM APRILIA 850 SRV 2012 > 2014/800 GP GILERA 2007 > 2011-653135 More informationQuantity required : 1 |
||||||
|
11 |
65313500BR - SPOILER GAU More informationQuantity required : 1 |
||||||
|
11 |
65313560RR-SPOILER GAU More informationQuantity required : 1 |
||||||
|
11 |
LEFT SPOILER- "PIAGGIO GENUINE PART" GILERA GP 800 NOIR 98/A -65313500XN2 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/1/3/img/68213.jpg)
12 |
SPOILER RIGHT UNPAINTED OEM APRILIA 850 SRV 2012 > 2014/800 GP GILERA 2007 >-2011653136 More informationQuantity required : 1 |
||||||
|
12 |
65313600BR - SPOILER DR More informationQuantity required : 1 |
||||||
|
12 |
65313600RR - SPOILER DR More informationQuantity required : 1 |
||||||
|
12 |
RIGHT SPOILER- "PIAGGIO GENUINE PART" GILERA GP 800 BLACK 98/A -65313600XN2- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
13 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/0/img/73360.jpg)
14 |
SCREW TORX (4. 2X21. 5) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178605 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
15 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/6/img/65366.jpg)
16 |
WASHER PLATE (6X16) OEM PIAGGIO COMMON A LA LA RANGE-013880 More informationQuantity required : 2 |
