Vehicle Exploded View - GILERA GP 800 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

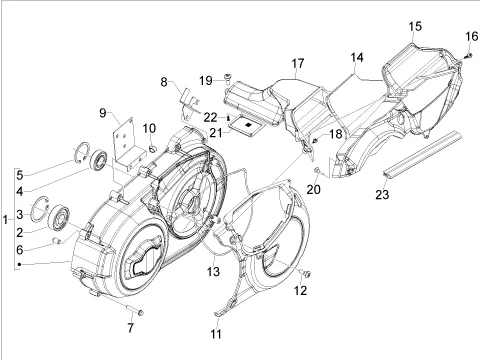

Moteur : 01.15 COUVERCLE CARTER - REFOIDISSEMENT CARTER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/175/GP_800_2009-2011-062.png)
1 |
CASING DE TRANSMISSION OEM PIAGGIO APRILIA SRV 850 2012 > 2014/GILERA GP 800 2007 > 2011-8330455 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/9/2/img/69192.jpg)
2 |
BEARING ON TRANSMISSION COVER "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA GP 800 -841532 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
3 |
CLIPS/CIRCLIPS (52X56, 2X2) OEM PIAGGIO COMMON A LA RANGE-006652 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
4 |
BEARING (20X42X12) CASING ENGINE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-82656R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/4/img/63824.jpg)
5 |
CLIPS/CIRCLIPS OEM PIAGGIO COMMON A LA RANGE-006642 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
6 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
7 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 12 |
||||||
|
7 |
874806 - VIS More informationQuantity required : 12 |
||||||
|
8 |
640648-BRACKET More informationQuantity required : 1 |
||||||
|
9 |
639537-BRACKET More informationQuantity required : 1 |
||||||
|
10 |
194945-CLIPS More informationQuantity required : 1 |
||||||
|
11 |
873495-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
12 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
|
13 |
832989-GASKET More informationQuantity required : 1 |
||||||
|
14 |
873513-FILTER More informationQuantity required : 1 |
||||||
|
15 |
654970-CONDUIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/5/img/66025.jpg)
16 |
SCREW AUTOTARAUDEUSE (3X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-258146 More informationQuantity required : 2 |
||||||
|
17 |
873494-CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
18 |
SCREW OF FAIRING (3, 5X13) OEM PIAGGIO COMMON A TOUTE LA RANGE-297498 More informationQuantity required : 3 |
||||||
|
19 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/4/img/66264.jpg)
20 |
CAP COVER OEM PIAGGIO COMMON A LA RANGE-293717 More informationQuantity required : 1 |
||||||
|
21 |
873412-FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/5/img/65445.jpg)
22 |
SCREW AUTOTARAUDEUSE (3. 6X12) CRUCIFORME ORIGNE PIAGGIO COMMON A LA RANGE-018603 More informationQuantity required : 2 |
||||||
|
23 |
655314 - JOINT More informationQuantity required : 1 |
