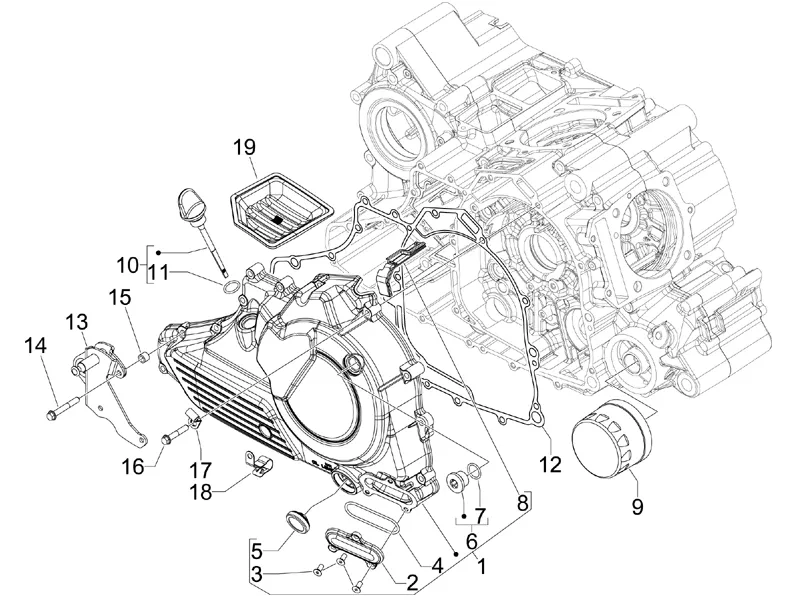

Moteur : 01.23 COUVERCLE VOLANT MAGNETIQUE - FILTRE À HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/175/GP_800_2009-2011-080.png)
1 |
8329915-COVER ROTOR More informationQuantity required : 1 |
||||||
|
2 |
843864-COVER More informationQuantity required : 1 |
||||||
|
3 |
878867-SCREW More informationQuantity required : 3 |
||||||
|
4 |
168201 O-RING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/8/img/66688.jpg)
5 |
JAUGE OIL OEM MOTO GUZZI V7, V9, V85 2021 >-485693 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/0/img/68810.jpg)
6 |
CAP CONTROLE DE CALLAGE ON CASING WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-8290405 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/2/8/0/img/158280.jpg)
7 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
|
7 |
O-RING OEM PIAGGIO COMMON A LA RANGE-1A009397 More informationQuantity required : 1 |
||||||
|
8 |
843370-PROTECTOR CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/9/img/68859.jpg)
9 |
OIL FILTER MAXI SCOOTER OEM PIAGGIO 400-500 MP3, X8, X9, X10, BEVERLY/GILERA 500 NEXUS, FUOCO, GP800/APRILIA SCARABEO, ATLANTIC, 1200 CAPONORD, DORSODURO, SHIVER, SRV 850-1A024459R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/4/8/img/70548.jpg)
10 |
CAP D'HUILE/JAUGE A OIL MANUELLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-874707 More informationQuantity required : 1 |
||||||
|
11 |
CAP D'HUILE/JAUGE A OIL MANUELLE OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-874707 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/4/0/img/69040.jpg)
12 |
GASKET OF COVER IGNITION OEM PIAGGIO GILERA GP 800 2007 >/APRILIA 850 SRV 2012 >-832990 More informationQuantity required : 1 |
||||||
|
13 |
649735-BRACKET CHAIN More informationQuantity required : 1 |
||||||
|
14 |
874745-SCREW More informationQuantity required : 5 |
||||||
|
15 |
649514-SPACER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
16 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 13 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/6/8/img/67068.jpg)
17 |
564629-CLAMP More informationQuantity required : 2 |
||||||
|
18 |
487948-CLAMP More informationQuantity required : 1 |
||||||
|
19 |
833007-FILTER OIL More informationQuantity required : 1 |
