Vehicle Exploded View - GILERA GP 800 2009-2011
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

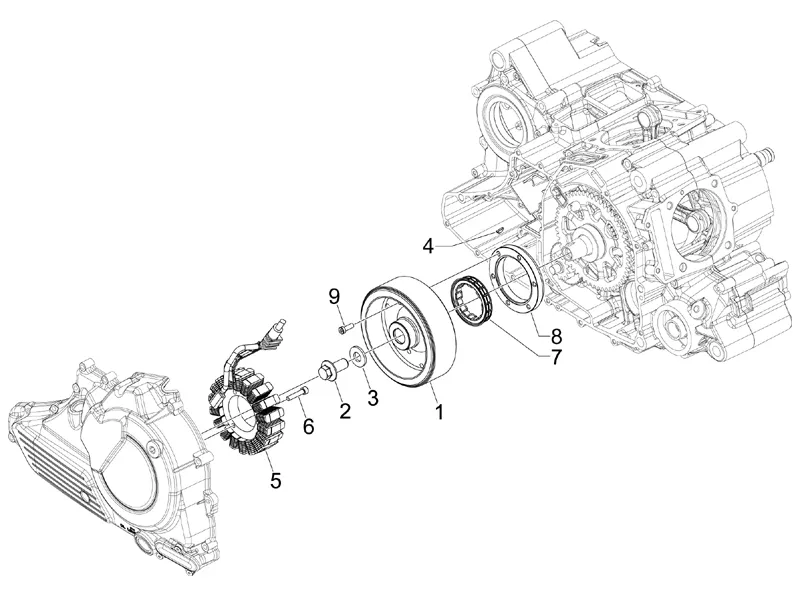

Moteur : 01.21 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/175/GP_800_2009-2011-077.png)
1 |
58146R-VOLANT CPLT More informationQuantity required : 1 |
||||||
|
2 |
B015563-SCREW More informationQuantity required : 1 |
||||||
|
3 |
825725-WASHER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
4 |
CLAVETTE IGNITION OEM PIAGGIO/APRILIA/GILERA/MOTO GUZZI/VESPA COMMON A LA RANGE-000267 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/3/2/img/67232.jpg)
5 |
STATOR OEM APRILIA SRV 850, GILERA 800 GP-58183R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/4/7/img/67347.jpg)
6 |
SCREW BTR HEAD BOMBEE (6X30) OEM PIAGGIO COMMON A LA RANGE-597564 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/2/img/68912.jpg)
7 |
WHEEL LIBRE DE STARTER MOTOR OEM APRILIA DORSODURO, CAPONORD, SHIVER, 660RS-830389 More informationQuantity required : 1 |
||||||
|
8 |
830390 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
9 |
B013207-SCREW More informationQuantity required : 6 |
