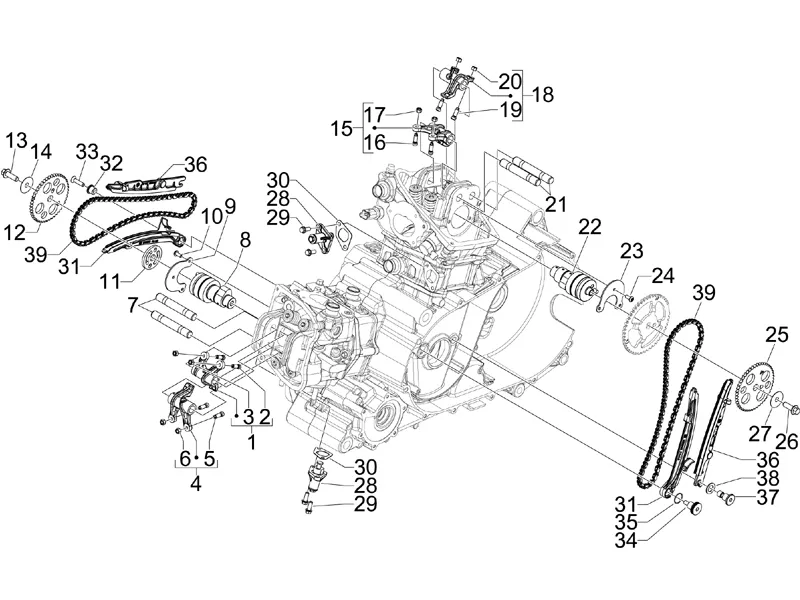

Vehicle Exploded View - GILERA GP 800 2009-2011

	P2R reference	68575
	Maker reference	8260275

CULBUTEUR/BASCULEUR INTAKE OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA-8260275

	P2R reference	68731
	Maker reference	82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

	P2R reference	66667
	Maker reference	484819

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

	P2R reference	68576
	Maker reference	8260285

CULBUTEUR/BASCULEUR EXHAUST OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO, 500 X9/GILERA 500 NEXUS, FUOCO, 800 GP, MANA/APRILIA 400-500 ATLANTIC, SCARABEO, 850 MANA, SRV-8260285

	P2R reference	68731
	Maker reference	82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

	P2R reference	66667
	Maker reference	484819

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

	P2R reference	68722
	Maker reference	827991

SHAFT OF CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827991

	P2R reference	70692
	Maker reference	8787875

8787875-SPINDLE A CAMS

	P2R reference	70710
	Maker reference	879186

PLATE GROUP BALANCIER OEM PIAGGIO 400-500 05-2010 >-879186

	P2R reference	72648
	Maker reference	B014598

SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-B014598

	P2R reference	69259
	Maker reference	843081

843081-SPACER

	P2R reference	69257
	Maker reference	843079

843079-COURONNE

	P2R reference	65837
	Maker reference	1A000425

SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-1A000425

	P2R reference	69345
	Maker reference	845316

WASHER PLATE (8. 3X30X0. 5) OEM PIAGGIO COMMON A LA RANGE-845316

	P2R reference	68575
	Maker reference	8260275

CULBUTEUR/BASCULEUR INTAKE OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV, MANA-8260275

	P2R reference	68731
	Maker reference	82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

	P2R reference	66667
	Maker reference	484819

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

	P2R reference	68576
	Maker reference	8260285

CULBUTEUR/BASCULEUR EXHAUST OEM PIAGGIO 400-500 BEVERLY, MP3, 400 X8, X-EVO, 500 X9/GILERA 500 NEXUS, FUOCO, 800 GP, MANA/APRILIA 400-500 ATLANTIC, SCARABEO, 850 MANA, SRV-8260285

	P2R reference	68731
	Maker reference	82817R

SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R

	P2R reference	66667
	Maker reference	484819

NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819

	P2R reference	68722
	Maker reference	827991

SHAFT OF CULBUTEUR OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-827991

	P2R reference	69389
	Maker reference	8465765

8465765-SPINDLE A CAMS

	P2R reference	70710
	Maker reference	879186

PLATE GROUP BALANCIER OEM PIAGGIO 400-500 05-2010 >-879186

	P2R reference	72648
	Maker reference	B014598

SCREW TORX (5X12) OEM PIAGGIO COMMON A LA RANGE-B014598

	P2R reference	69257
	Maker reference	843079

843079-COURONNE

	P2R reference	65837
	Maker reference	1A000425

SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-1A000425

	P2R reference	69345
	Maker reference	845316

WASHER PLATE (8. 3X30X0. 5) OEM PIAGGIO COMMON A LA RANGE-845316

	P2R reference	204079
	Maker reference	289919

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R

	P2R reference	204079
	Maker reference	82650R

TENDEUR DE CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 A 500 CC/MOTOS APRILIA-82650R

	P2R reference	72723
	Maker reference	B016777

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777

	P2R reference	69546
	Maker reference	847928

GASKET OF TENDEUR CHAIN DE TIMING OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-847928

	P2R reference	69000
	Maker reference	832293

PATIN/TENDEUR REGLABLE DE CHAIN DE TIMING OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-832293

	P2R reference	68565
	Maker reference	825737

SPACER DE TENDEUR DE CHAIN DE TIMING OEM PIAGGIO 350-400-500-530 MP3, BEVERLY, X9-825737

	P2R reference	72728
	Maker reference	B016797

SCREW BTR HEAD FRAISEE (6X16) OEM PIAGGIO COMMON A LA RANGE-B016797

	P2R reference	65838
	Maker reference	1A000426

1A000426 - VIS

	P2R reference	72634
	Maker reference	B013444

B013444-SCREW

	P2R reference	66540
	Maker reference	478012

O-RING EPURATEUR OIL OEM APRILIA 660 RS, TUAREG, TUONO-750 SHVER-478012

	P2R reference	68999
	Maker reference	832292

PATIN FIXE DE CHAIN DE TIMING OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-832292

	P2R reference	69050
	Maker reference	833053

833053 - VIS

	P2R reference	72635
	Maker reference	B013446

B013446-SCREW

	P2R reference	65424
	Maker reference	016661

WASHER/GASKET (12X20X1. 5) CUIVRE OEM COMMON A LA RANGE-016661

	P2R reference	68997
	Maker reference	832275

CHAIN DE TIMING OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-832275
