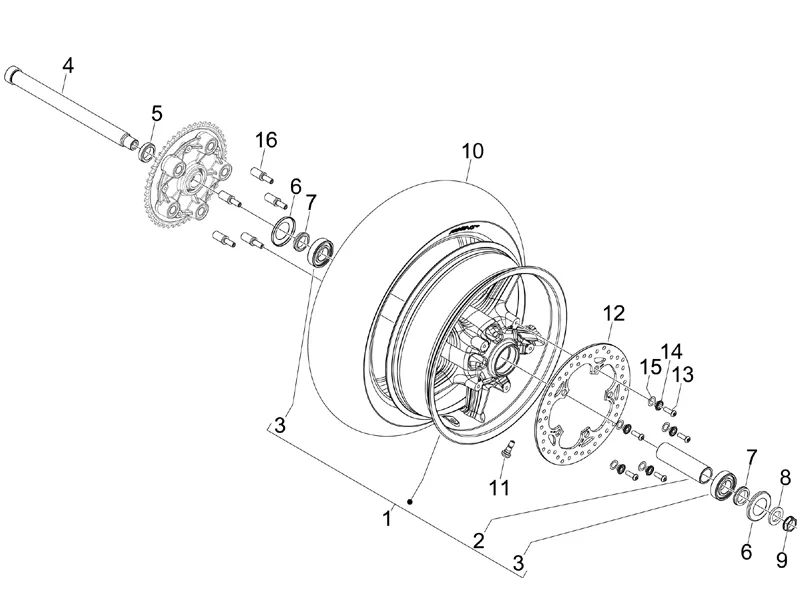

Vehicle Exploded View - GILERA GP 800 2007-2008 GILERA

Suspensions - roues : 04.12 ROUE ARRIÈRE
Roue arrière
Search
649084 - ROUE ARIER

1
P2R reference P2R reference 86902
Maker reference Maker reference 649084

649084 - ROUE ARIER

More information

Quantity required : 1

601173 - ENTRETOISE

2
P2R reference P2R reference 67469
Maker reference Maker reference 601173

601173-SPACER

More information

Quantity required : 1

BEARING (30X62X16) REAR WHEEL OEM PIAGGIO 800 GP 2007 > 2011, 660 RS, TUONO 2020 > APRILIA-832848

3
P2R reference P2R reference 69023
Maker reference Maker reference 832848

BEARING (30X62X16) REAR WHEEL OEM PIAGGIO 800 GP 2007 > 2011, 660 RS, TUONO 2020 > APRILIA-832848

More information

Quantity required : 2

REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -649077

4
P2R reference P2R reference 68064
Maker reference Maker reference 649077

REAR WHEEL AXLE "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -649077

More information

Quantity required : 1

649472 - ENTRETOISE

5
P2R reference P2R reference 68072
Maker reference Maker reference 649472

649472-SPACER

More information

Quantity required : 1

601174 - GODET

6
P2R reference P2R reference 67470
Maker reference Maker reference 601174

601174 - GODET

More information

Quantity required : 2

601184 - ENTRETOISE

7
P2R reference P2R reference 67472
Maker reference Maker reference 601184

601184 - ENTRETOISE

More information

Quantity required : 2

600075 - RONDELLE

8
P2R reference P2R reference 67408
Maker reference Maker reference 600075

600075-WASHER

More information

Quantity required : 1

NUT WHEEL SPINDLE REAR OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-600354

9
P2R reference P2R reference 67432
Maker reference Maker reference 600354

NUT WHEEL SPINDLE REAR OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-600354

More information

Quantity required : 1

1R000007 - PNEU 160/60-15" MICHELIN

10
P2R reference P2R reference 65859
Maker reference Maker reference 1R000007

1R000007 - PNEU 160/60-15" MICHELIN

More information

Quantity required : 1

PNEU160 / 60 - 15" PIRELLI

10
P2R reference P2R reference
Maker reference Maker reference 649135

PNEU160 / 60 - 15" PIRELLI

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

11
P2R reference P2R reference 67350
Maker reference Maker reference 597679

VALVE TUBELESS OEM PIAGGIO COMMON A LA RANGE-597679

More information

Quantity required : 1

REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA GP 800 2007> -650391

12
P2R reference P2R reference 87071
Maker reference Maker reference 650391

REAR BRAKE DISC "PIAGGIO GENUINE PART" GILERA GP 800 2007> -650391

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

13
P2R reference P2R reference 67066
Maker reference Maker reference 564606

SCREW BTR HEAD BOMBEE (8X25) OEM PIAGGIO COMMON A LA RANGE-564606

More information

Quantity required : 5

BUSH FOR BRAKE DISC (FRONT)"PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650083

14
P2R reference P2R reference 68136
Maker reference Maker reference 650083

BUSH FOR BRAKE DISC (FRONT)"PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -650083

More information

Quantity required : 5

WASHER SPRING (D12) OEM PIAGGIO COMMON A LA RANGE-AP8121641

15
P2R reference P2R reference 71479
Maker reference Maker reference AP8121641

WASHER SPRING (D12) OEM PIAGGIO COMMON A LA RANGE-AP8121641

More information

Quantity required : 5

PIVOT/SCREW OF COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B045033

16
P2R reference P2R reference 72853
Maker reference Maker reference B045033

PIVOT/SCREW OF COURONNE REAR OEM PIAGGIO APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV-B045033

More information

Quantity required : 5
