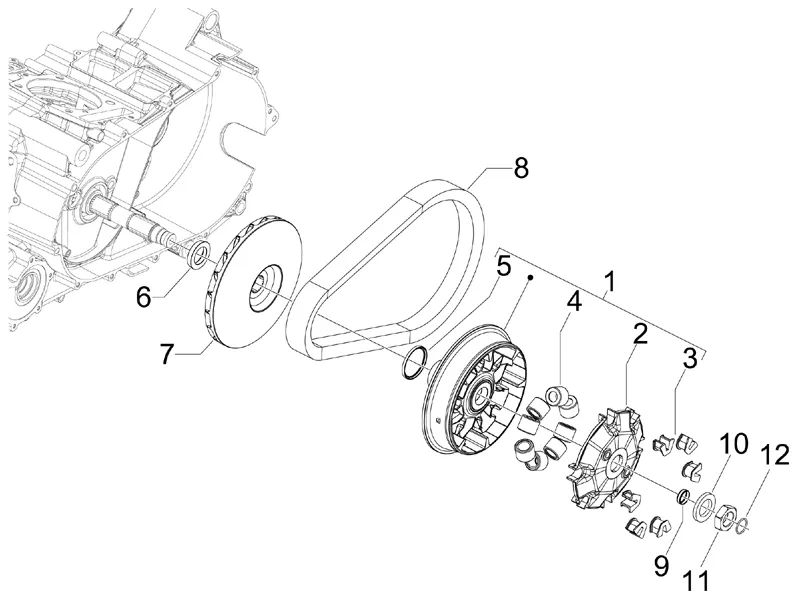

Vehicle Exploded View - GILERA GP 800 2007-2008 GILERA

Moteur : 01.13 POULIE MOTRICE
Poulie motrice
Search
VARIATOR ROLLERS HOUSING "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -877519-

1
P2R reference P2R reference 70665
Maker reference Maker reference 877519

HALF PULLEY/FLASQUE MOBILE DE PULLEY MOTRICE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV, MANA-877519

More information

Quantity required : 1

PLATE D'APPUIS GALETS OEM PIAGGIO GILERA GP 800/APRILIA SRV 850-846967

2
P2R reference P2R reference 69400
Maker reference Maker reference 846967

PLATE D'APPUIS GALETS OEM PIAGGIO GILERA GP 800/APRILIA SRV 850-846967

More information

Quantity required : 1

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 800 GILERA GP 2008 >/APRILIA 850 SRV 2012 >-842331

3
P2R reference P2R reference 69225
Maker reference Maker reference 842331

GUIDE/PATIN DE VARIATOR OEM PIAGGIO 800 GILERA GP 2008 >/APRILIA 850 SRV 2012 >-842331

More information

Quantity required : 6

GALET/ROLLER MAXI SCOOTER OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 > (SOLD INDIVIDUALLY)-877514

4
P2R reference P2R reference 70664
Maker reference Maker reference 877514

GALET/ROLLER MAXI SCOOTER OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 > (SOLD INDIVIDUALLY)-877514

More information

Quantity required : 8

846883 - CIRCLIPS

5
P2R reference P2R reference 69398
Maker reference Maker reference 846883

846883-CIRCLIPS

More information

Quantity required : 1

SPACER PULLEY MOTRICE OEM GILERA 800 GP 2007 > 2011-831588

6
P2R reference P2R reference 68970
Maker reference Maker reference 831588

SPACER PULLEY MOTRICE OEM GILERA 800 GP 2007 > 2011-831588

More information

Quantity required : 1

HALF DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -847118

7
P2R reference P2R reference 69467
Maker reference Maker reference 847118

HALF DRIVING PULLEY "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV, MANA -847118

More information

Quantity required : 1

DRIVE BELT MAXI SCOOTER OEM APRILIA 850 SRV 2012 >, 850 MANA 2007 >/GILERA GP 800 2007 >-845010

8
P2R reference P2R reference 69339
Maker reference Maker reference 845010

DRIVE BELT MAXI SCOOTER OEM APRILIA 850 SRV 2012 >, 850 MANA 2007 >/GILERA GP 800 2007 >-845010

More information

Quantity required : 1

BUSH OF PULLEY MOTRICE OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 >-846763

9
P2R reference P2R reference 69396
Maker reference Maker reference 846763

BUSH OF PULLEY MOTRICE OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 >-846763

More information

Quantity required : 1

841512-SPRING

10
P2R reference P2R reference 69190
Maker reference Maker reference 841512

841512-SPRING

More information

Quantity required : 1

NUT - FOR DRIVING PULLEY FASTENING "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -841513-

11
P2R reference P2R reference 69191
Maker reference Maker reference 841513

NUT - FOR DRIVING PULLEY FASTENING "PIAGGIO GENUINE PART" APRILIA 850 SRV/GILERA 800 GP -841513-

More information

Quantity required : 1

O RING OF SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-825952

12
P2R reference P2R reference 68573
Maker reference Maker reference 825952

O RING OF SPROCKET OF PUMP A OIL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-825952

More information

Quantity required : 1
