Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

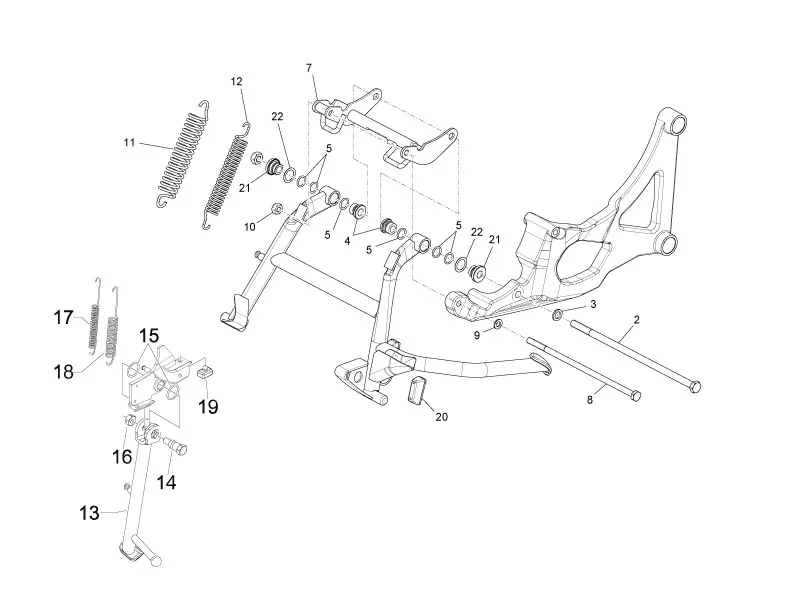

Châssis - parties plastiques - carrosseries : 02.25 BÉQUILLE/S
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-110.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/4/6/img/67446.jpg)
1 |
CENTER STAND "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -600526 More informationQuantity required : 1 |
||||||
2 |
649821-SCREW More informationQuantity required : 1 |
||||||
|
3 |
003062-WASHER S00306200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/4/0/5/img/67405.jpg)
4 |
SPACER INTERIEURE DE CENTRE STAND OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-599786 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
5 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/7/img/66047.jpg)
6 |
NUT FLANGE (12X1. 25) OEM PIAGGIO COMMON A LA RANGE-261319 More informationQuantity required : 1 |
||||||
|
7 |
648979-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/3/2/9/img/67329.jpg)
8 |
SCREW TH (10X295) OEM PIAGGIO COMMON A LA RANGE-597080 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
9 |
WASHER PLATE (10, 4X18X2) OEM PIAGGIO COMMON A LA RANGE-016626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
10 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
11 |
SPRING CENTRE STAND GROS MODELE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-650145 More informationQuantity required : 1 |
||||||
|
12 |
SPRING CENTRE STAND PETIT MODELE OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-650144 More informationQuantity required : 1 |
||||||
|
13 |
600443-STAND More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/4/0/5/8/img/154058.jpg)
14 |
SCREW OF MOUNTING SIDE STAND OEM PIAGGIO BEVERLY, X9, X10, 50-125 LIBERTY CORPORATE 2017 > 2019-1C001480 More informationQuantity required : 1 |
||||||
|
14 |
SCREW OF MOUNTING SIDE STAND OEM PIAGGIO BEVERLY, X9, X10, 50-125 LIBERTY CORPORATE 2017 > 2019-1C001480 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/1/2/img/65812.jpg)
15 |
O-RING SIDE STAND OEM PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 NEXUS, FUOCO, GP 800/APRILIA 400-500 ATLANTIC, SCARABEO, 850 SRV-191189 More informationQuantity required : 2 |
||||||
|
16 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/6/img/66286.jpg)
17 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-295788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/7/img/66287.jpg)
18 |
SPRING DE STAND LATERAL OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-295789 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/6/8/img/67268.jpg)
19 |
BUFFER DE STAND OEM PIAGGIO COMMON LA RANGE SCOOTER ET MAXI SCOOTER-582885 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
20 |
BUFFER/RUBBER DE STAND PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-581560 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/5/3/img/68153.jpg)
21 |
SPACER EXTERIEUR DE CENTRE STAND OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-650506 More informationQuantity required : 2 |
||||||
|
22 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/1/4/img/68314.jpg)
22 |
WASHER PLATE (20. 1X27. 7X0. 3) OEM PIAGGIO COMMON A LA RANGE-656139 More informationQuantity required : 2 |
||||||
|
23 |
WASHER PLATE (20. 1X27. 7X0. 3) OEM PIAGGIO COMMON A LA RANGE-656139 More informationQuantity required : 2 |
