Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

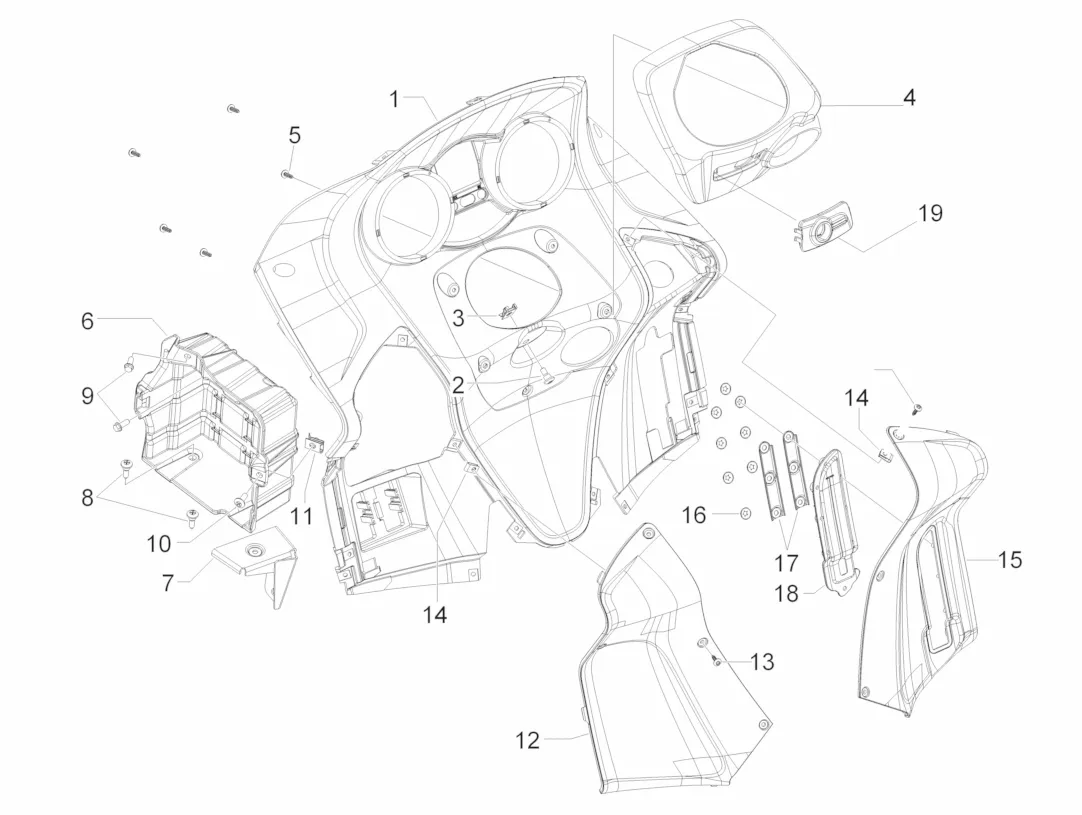

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-128.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/3/6/3/img/89363.jpg)
1 |
LEG SHIELD DE PANEL DE EDGE OEM PIAGGIO GILERA 800 GP 2007 > BLACK-6565166090 More informationQuantity required : 1 |
||||||
1 |
ENTOURAGE INSTRUMENT CLUSTER OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-656516 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/4/img/66034.jpg)
2 |
SCREW CRUCIFORME (D6) DE FAIRING OEM PIAGGIO COMMON A TOUTE LA RANGE-259348 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
2 |
SCREW TORX (6X16) WITH EPAULEMENT OEM PIAGGIO COMMON A LA RANGE-CM179202 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
3 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/1/5/img/68215.jpg)
4 |
COVER CENTRAL DE PANEL DE EDGE OEM PIAGGIO GILERA 800 GP UNPAINTED READY TO PAINT-653144 More informationQuantity required : 1 |
||||||
|
4 |
65314400BR - COUVERCLE CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/6/0/8/img/87608.jpg)
4 |
DASHBOARD CENTRAL COVER "PIAGGIO GENUINE PART" GILERA 800 GP -65314400ET- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
5 |
SCREW AUTOTARAUDEUSE (3. 85X16) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-270793 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/0/4/img/68204.jpg)
6 |
HOUSING BRACKET BATTERY OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-652917 More informationQuantity required : 1 |
||||||
|
7 |
652908-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/1/3/img/67113.jpg)
8 |
SCREW FAIRING (M6) OEM PIAGGIO COMMON A TOUTE LA RANGE-575249 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/3/img/72723.jpg)
9 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-B016777 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
10 |
SCREW TBC (6X16) OEM PIAGGIO COMMON A LA RANGE-272836 More informationQuantity required : 1 |
||||||
|
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/3/1/6/img/68316.jpg)
12 |
DOOR DE HOUSING A BATTERY OEM PIAGGIO GILERA 800 GP/APRILIA 850 SRV-656194000C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
13 |
SCREW TORX (4, 2X16) AUTOTARAUDEUSE OEM PIAGGIO COMMON A LA RANGE-CM178601 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
14 |
NUT SHEET METAL (4, 2 PARKER) OEM PIAGGIO COMMON A LA RANGE-CM017410 More informationQuantity required : 8 |
||||||
|
15 |
654968000C-LID More informationQuantity required : 1 |
||||||
|
15 |
656196000C - ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/5/9/img/65959.jpg)
16 |
WASHER BRAKE OEM PIAGGIO COMMON A TOUTE LA RANGE-230359 More informationQuantity required : 8 |
||||||
|
17 |
654813-PLATE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/7/0/img/68270.jpg)
18 |
PARKING BRAKE LEVER GASKET "PIAGGIO GENUINE PART" GILERA 800 GP/APRILIA 850 SRV -654808 More informationQuantity required : 1 |
||||||
|
19 |
656136-BADGE * More informationQuantity required : 1 |
