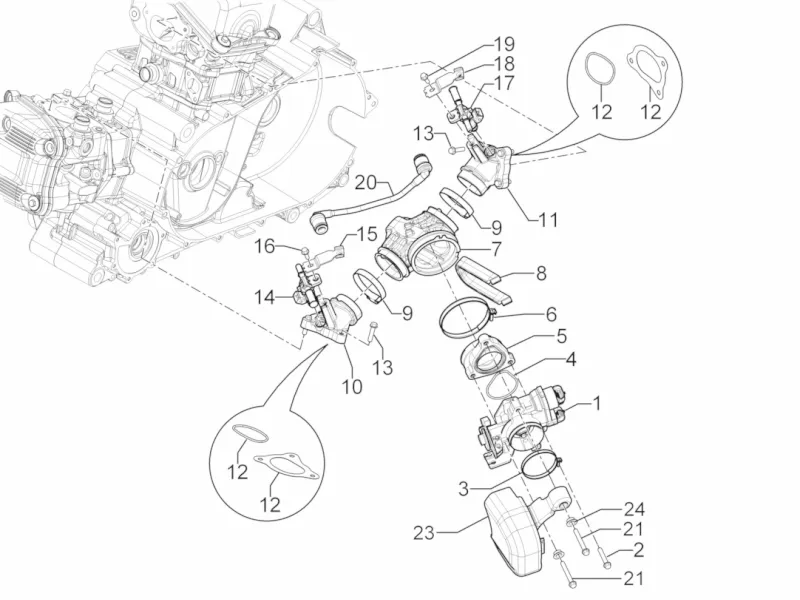

Moteur : 01.36 CORPS PAPILLON - INJECTEUR - RACCORD D'ADMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-095.png)
1 |
641220 - CARBURATEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
2 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
||||||
|
3 |
854970-CLAMP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/7/img/68987.jpg)
4 |
GASKET BODY THROTTLE BODY/FITTING OEM APRILIA 850 SRV 2012 > 2014/800 GP GILERA 2007 > 2011-832011 More informationQuantity required : 1 |
||||||
|
5 |
841698-BRACKET More informationQuantity required : 1 |
||||||
|
6 |
843406 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/1/img/69201.jpg)
7 |
MANIFOLD INTAKE OEM PIAGGIO GILERA 800 GP 2007 >/APRILIA 850 SRV 2012 >, MANA 2007 >-841697 More informationQuantity required : 1 |
||||||
|
8 |
843404-ELEMENT COLL. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/5/6/img/111556.jpg)
9 |
CLAMP SERRAGE TUBE 40-60 OEM PIAGGIO COMMON A LA RANGE-614188 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/7/img/70737.jpg)
10 |
FITTING D'ADMISSION OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-880652 More informationQuantity required : 1 |
||||||
|
11 |
FITTING D'ADMISSION OEM PIAGGIO GILERA GP 800/APRILIA 850 SRV-880652 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/5/3/img/72753.jpg)
12 |
GASKET OF FITTING INTAKE OEM PIAGGIO 500 MP3 2014 >/GILERA 800 GP/APRILIA 850 SRV, MANA-B017118 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
13 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE/KICK DERBI 50 SENDA-B016774 More informationQuantity required : 6 |
||||||
|
14 |
5848135-BRACKET INIECTOR More informationQuantity required : 1 |
||||||
|
15 |
654190-BRACKET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
16 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
||||||
|
17 |
5848135-BRACKET INIECTOR More informationQuantity required : 1 |
||||||
|
18 |
654190-BRACKET More informationQuantity required : 1 |
||||||
|
19 |
SCREW FLANGE TH (5X16) OEM PIAGGIO COMMON A LA RANGE-830061 More informationQuantity required : 1 |
||||||
|
20 |
842199-CANALISATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
21 |
SCREW TH FLANGE (6X40) OEM PIAGGIO COMMON A LA RANGE-874550 More informationQuantity required : 2 |
||||||
|
23 |
655778-PROTECTOR BODY CLAPET DE THROTTLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
24 |
BUSH EN T INNER 6 MM OEM PIAGGIO COMMON A LA RANGE-AP8121811 More informationQuantity required : 2 |
