Vehicle Exploded View - GILERA GP 800 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

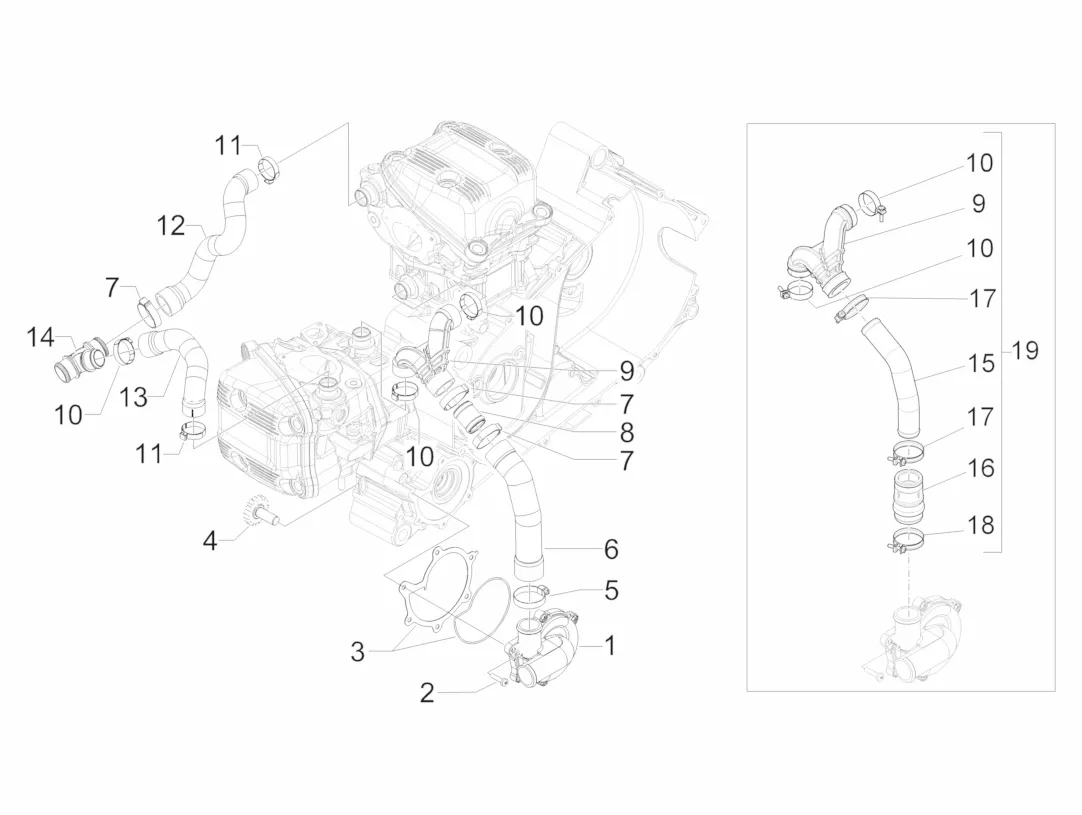

Moteur : 01.19 POMPE À EAU
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/174/GP_800_2007-2008-074.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/1/img/72801.jpg)
1 |
COVER OF PUMP A WATER OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 >-B019357 More informationQuantity required : 1 |
|||||||||
2 |
1A002998-SCREW M5X22 More informationQuantity required : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/7/5/img/72775.jpg)
3 |
GASKET COVER OF PUMP A WATER OEM PIAGGIO GILERA 800 GP 2008 >/APRILIA 850 SRV 2012 >-B018029 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/2/6/img/69026.jpg)
4 |
GEAR WATER PUMP OEM PIAGGIO 800 GP GILERA 2007 > 2011-832926 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/9/9/0/img/77990.jpg)
5 |
298576-CLAMP More informationQuantity required : 1 |
|||||||||
|
6 |
877375-HOSE More informationQuantity required : 1 |
|||||||||
|
7 |
878608-CLAMP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/5/img/72885.jpg)
7 |
CLAMP CLIC 35-33 OEM PIAGGIO COMMON A LA RANGE-CM001926 More informationQuantity required : 3 |
|||||||||
|
8 |
877376-FITTING More informationQuantity required : 1 |
|||||||||
|
9 |
876695-CONDUITE D'ARRIVEE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/4/img/149124.jpg)
10 |
1A006280 - COLLIER More informationQuantity required : 5 |
|||||||||
|
10 |
1A006280 - COLLIER More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/9/img/72869.jpg)
11 |
CLAMP HOSE COOLING (30. 8 MM) OEM PIAGGIO COMMON A LA RANGE-CM001908 More informationQuantity required : 2 |
|||||||||
|
12 |
847376-HOSE WATER More informationQuantity required : 1 |
|||||||||
|
13 |
834311-HOSE WATER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/1/img/69211.jpg)
14 |
842071-FITTING T More informationQuantity required : 1 |
|||||||||
|
15 |
877376-FITTING More informationQuantity required : 1 |
|||||||||
|
16 |
880256 - TUYAU More informationQuantity required : 1 |
|||||||||
|
17 |
878608-CLAMP More informationQuantity required : 2 |
|||||||||
|
18 |
878608-CLAMP More informationQuantity required : 1 |
|||||||||
|
19 |
497573 - KIT DURITES GP 800 More informationQuantity required : 1 |
|||||||||
