Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

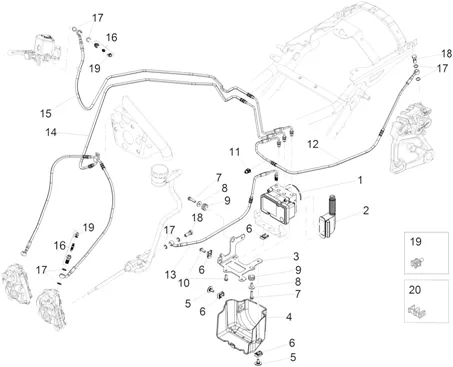

Système frein abs : 06.050 SYSTÈME FREIN ABS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_06.050.PNG)
1 |
2D000193-CENTRE More informationQuantity required : 1 |
||||||
|
2 |
860746-CAPUCHON ISOLANT More informationQuantity required : 1 |
||||||
|
3 |
B063211-PLATE BRACKET CENTALINA ABS More informationQuantity required : 1 |
||||||
|
4 |
887798-COVER INFERIORE ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/8/8/8/img/99888.jpg)
5 |
SCREW OF COVER CULBUTEURS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-976591 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/3/img/71943.jpg)
7 |
SCREW FLANGE TH (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152280 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/4/img/72294.jpg)
8 |
BUSH EN T (DIAMETER INNER MM 6) OEM PIAGGIO COMMON A LA RANGE-AP8221023 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/4/img/71384.jpg)
9 |
RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
10 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 3 |
||||||
|
11 |
AP8121882-GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
12 |
887585-TUBO BRAKE PINZA POST-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
13 |
2B001599-HOSE BRAKE REAR More informationQuantity required : 1 |
||||||
|
14 |
887583-TUBO PINZE ANT-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
15 |
887582-TUBO BRAKE PUMP ANT-CENTRALINA ABS More informationQuantity required : 1 |
||||||
|
16 |
AP8133945-KIT SPURGO ANT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
17 |
WASHER (10X14X1, 6) OEM PIAGGIO COMMON A LA RANGE-AP8113004 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
18 |
SCREW HOSE OIL (10MM) OEM PIAGGIO COMMON A LA RANGE-AP8113003 More informationQuantity required : 2 |
||||||
|
19 |
AP8113070-CAPUCHON RENIFLARD More informationQuantity required : 2 |
||||||
|
19 |
AP8202238-ANCRAGE GUIDE-CABLE More informationQuantity required : 2 |
||||||
|
20 |
AP8201808-GUIDE-CABLE More informationQuantity required : 2 |
