Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

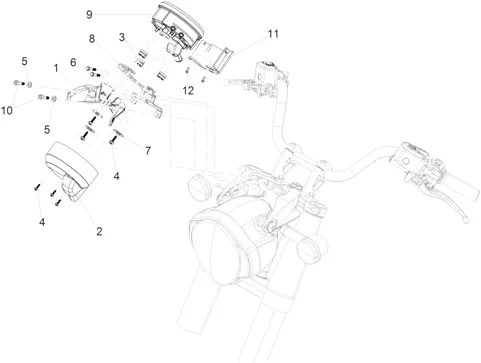

Feux - instruments : 08.020 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_08.020.PNG)
1 |
B063936-COVER ANTERIORE More informationQuantity required : 1 |
||||||
|
2 |
2B001559-COVER INSTRUMENT CLUSTER CHROMÉ More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/6/img/71776.jpg)
3 |
RUBBER GUIDE FIL OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8144662 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
4 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278 More informationQuantity required : 2 |
||||||
|
7 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
||||||
|
8 |
887555-BRACKET CRUSCOTTO COMPLETO More informationQuantity required : 1 |
||||||
|
9 |
2D000248-PANEL DE EDGE More informationQuantity required : 1 |
||||||
|
10 |
895709-SCREW More informationQuantity required : 2 |
||||||
|
11 |
2B001645-LATCH FAIRING CHROMÉ More informationQuantity required : 1 |
||||||
|
12 |
2B001980-SCREW TB 2, 5X6 TORX More informationQuantity required : 1 |
