Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

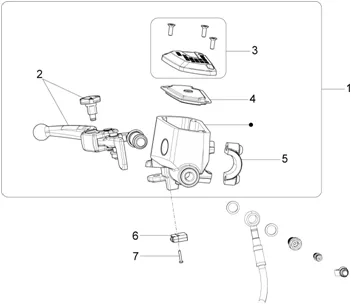

Système frein abs : 06.010 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_06.010.PNG)
1 |
887764 - POMPA FRENO ANT ABS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/9/img/70839.jpg)
2 |
BRAKE LEVER FRONT OEM PIAGGIO APRILIA 750 DORSODURO 2008 >, SHIVER 2007 >, 850 MANA 2007 >/MOTO-GUZZI 1400 CALIFORNIA 2012 >, AUDACE 2015 >, ELDORADO 2015 >, V85TT 2019 >-2B006871 More informationQuantity required : 1 |
||||||
|
3 |
B064105-(*) COPERCHIETTO BRAKE COMPLETO * More informationQuantity required : 1 |
||||||
|
4 |
858423-DIAPHRAGME More informationQuantity required : 1 |
||||||
|
5 |
856050-CAVALIER More informationQuantity required : 1 |
||||||
|
6 |
887627-INTERRUTTORE BRAKE DIAGNOSTICABILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/2/5/0/img/68250.jpg)
7 |
SCREW CRUCIFORME (2X12) OEM PIAGGIO COMMON A LA RANGE-654174 More informationQuantity required : 2 |
