Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

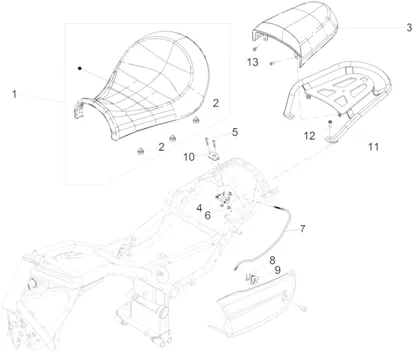

Carrosserie : 02.120 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_02.120.PNG)
1 |
2B001797000C1-SIÈGE PILOTE More informationQuantity required : 1 |
||||||
|
2 |
B064023-BUFFER SEAT More informationQuantity required : 10 |
||||||
|
3 |
2B001799000C1-SEAT PASSENGER More informationQuantity required : 1 |
||||||
|
4 |
AP8102913-PL. FIX. SEAT PASS. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/4/img/71914.jpg)
5 |
SCREW BTR HEAD BOMBEE (6X25) OEM PIAGGIO COMMON A LA RANGE-AP8152117 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
6 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8152299 More informationQuantity required : 2 |
||||||
|
7 |
B063439-CABLE SERRATURA SELLA More informationQuantity required : 1 |
||||||
|
8 |
978415-PIASTRINA BRACKET CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/6/3/img/71463.jpg)
9 |
AGRAFE A FORK DE MAINTIENT DE LOCK DE UNDERSEAT COMPARTMENT OEM PIAGGIO COMMON A LA RANGE APRILIA ET MOTO-GUZZI-AP8121420 More informationQuantity required : 1 |
||||||
|
10 |
886820-PIASTRINA CHIUSURA SELLA More informationQuantity required : 1 |
||||||
|
11 |
2B001813 - POIGNEE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
12 |
SCREW FLANGE TH (8X25) OEM PIAGGIO COMMON A LA RANGE-AP8152287 More informationQuantity required : 3 |
||||||
|
13 |
SCREW FLANGE BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98210616 More informationQuantity required : 1 |
