Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

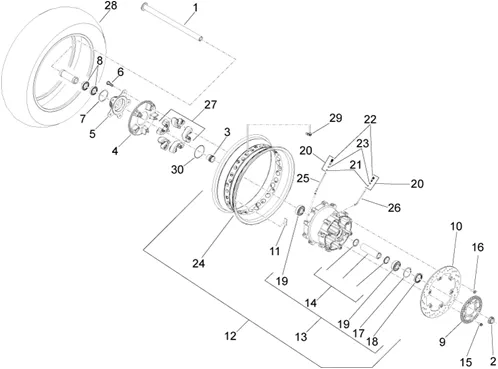

Roues : 05.020 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_05.020.PNG)
1 |
886967-PERNO WHEEL POSTERIORE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
2 |
NUT DE REAR WHEEL OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA-AP8152324 More informationQuantity required : 1 |
||||||
|
3 |
887461-SPACER PARASTRAPPI More informationQuantity required : 1 |
||||||
|
4 |
887311-DISCO TRASCINAMENTO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
5 |
2B000090-FLANGIA DISCO PARASTRAPPI More informationQuantity required : 1 |
||||||
|
6 |
B063849-SCREW TE FL M10X30 10. 9 More informationQuantity required : 5 |
||||||
|
7 |
887518-ANELLO OR 56. 74X3. 53 More informationQuantity required : 1 |
||||||
|
8 |
887517-CUSCINETTO A SFERE 61906 2RS1 30X47X9 More informationQuantity required : 2 |
||||||
|
9 |
887875 - RUOTA FONICA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/4/2/6/img/99426.jpg)
10 |
BRAKE DISC REAR OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO-887489 More informationQuantity required : 1 |
||||||
|
11 |
GU14616150-CONTREPOIDS More informationQuantity required : 1 |
||||||
|
12 |
2B001952-WHEEL AR More informationQuantity required : 1 |
||||||
|
13 |
2B001235-HUB REAR More informationQuantity required : 1 |
||||||
|
14 |
887530-SPACER WHEEL POST More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/7/img/71947.jpg)
15 |
SCREW FLANGE TH (8X16) OEM PIAGGIO COMMON A LA RANGE-AP8152285 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/8/img/130868.jpg)
16 |
SCREW BTR (8X25) MOUNTING BRAKE DISC REAR OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU30611460 More informationQuantity required : 6 |
||||||
|
17 |
CLIPS/CIRCLIPS (D52) OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8125839 More informationQuantity required : 1 |
||||||
|
18 |
AP8125838-BUSH D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
19 |
BEARING (25X52X15) DE REAR WHEEL (6205) OEM PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4, 50-125 RS4, 900-1200 DORSODURO/GILERA 50 SMT, RCR 2018 >/MOTO GUZZI 1400 CALIFORNIA, AUDACE-AP8110093 More informationQuantity required : 2 |
||||||
|
20 |
978810-NIPPLO SISTEMA STS More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/7/6/6/img/100766.jpg)
21 |
ANNEAU ELASTIC NUT DE SPOKE TUBELESS OEM PIAGGIO MOTO-GUZZI 940 BELLAGIO, 1400 ELDORADO, 1200 STELVIO, GRISO-978811 More informationQuantity required : 36 |
||||||
|
22 |
Nipple |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/8/img/132208.jpg)
23 |
O-RING FRONT WHEEL/REAR (6, 07X1, 78) OEM PIAGGIO MOTO-GUZZI 1400 ELDORADO, 940 BELLAGIO, 1200 GRISO, STELVIO-GU90706061 More informationQuantity required : 36 |
||||||
|
24 |
2B0019554-RIM ARR. 5. 5X16 " More informationQuantity required : 1 |
||||||
|
25 |
2B001951-SPOKE More informationQuantity required : 18 |
||||||
|
26 |
2B001950-SPOKE More informationQuantity required : 18 |
||||||
|
27 |
B064290-GOMMINO PARASTRAPPI More informationQuantity required : 5 |
||||||
|
28 |
2B001328 - PNEU ARRIERE 180/65/16 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
29 |
VALVE TUBELESS OEM MOTO GUZZI COMMON A LA RANGE-GU03617710 More informationQuantity required : 1 |
||||||
|
30 |
GU90706664-BUSH More informationQuantity required : 1 |
