Vehicle Exploded View - MOTO-GUZZI ELDORADO 1400 MY15
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

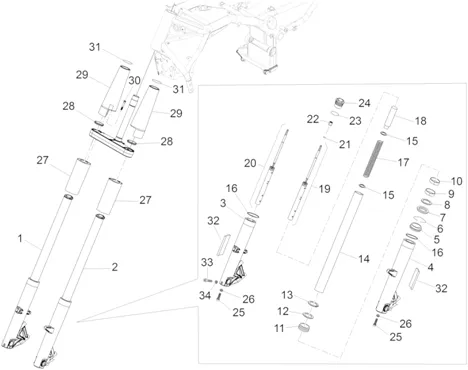

Suspensions : 04.025 FOURCHE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/488/Eldorado_1400_MY15_04.025.PNG)
1 |
887512-STELO DX FORCELLA More informationQuantity required : 1 |
||||||
|
2 |
2B000383 - TIGE GAUCHE More informationQuantity required : 1 |
||||||
|
3 |
887829-GAMBALE DX FORCELLA More informationQuantity required : 1 |
||||||
|
4 |
887830-GAMBALE SX FORCELLA More informationQuantity required : 1 |
||||||
|
5 |
B064059-(*) PARAPOLVERE * More informationQuantity required : 1 |
||||||
|
6 |
B064060-(*) ANELLO SEEGER * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/2/4/7/img/101247.jpg)
7 |
OIL SEAL DE FORK SACHS OEM PIAGGIO 1400 CALIFORNIA 2012 >, ELDORADO 2015 > MOTO GUZZI-B064065 More informationQuantity required : 1 |
||||||
|
8 |
B064064-(*) ANELLO * More informationQuantity required : 1 |
||||||
|
9 |
B064062-(*) BUSSOLA GUIDA * More informationQuantity required : 1 |
||||||
|
10 |
B064063-(*) BUSSOLA SCORRIMENTO * More informationQuantity required : 1 |
||||||
|
11 |
B064068-(*) TAMPONE MECCANICO * More informationQuantity required : 1 |
||||||
|
12 |
B064066-(*) SPACER TAMPONAMENTO * More informationQuantity required : 1 |
||||||
|
13 |
B064067-(*) ANELLO SEEGER * More informationQuantity required : 1 |
||||||
|
14 |
B064049 - (*)STELO More informationQuantity required : 1 |
||||||
|
15 |
B064058-(*) ROSETTA * More informationQuantity required : 1 |
||||||
|
16 |
B064102-ANELLO ELASTICO More informationQuantity required : 2 |
||||||
|
17 |
B064050-(*) MOLLA * More informationQuantity required : 1 |
||||||
|
18 |
B064053-(*) TUBO PRECARICA * More informationQuantity required : 1 |
||||||
|
19 |
B064055-(*) POMPANTE SX CPL * More informationQuantity required : 1 |
||||||
|
20 |
B064056-(*) POMPANTE DX CPL * More informationQuantity required : 1 |
||||||
|
21 |
B064061-(*) ANELLO OR * More informationQuantity required : 1 |
||||||
|
22 |
B064052-(*) DADO * More informationQuantity required : 1 |
||||||
|
23 |
B064057-(*) ANELLO OR * More informationQuantity required : 1 |
||||||
|
24 |
B064051-(*) CAP STELO * More informationQuantity required : 1 |
||||||
|
25 |
B064069-(*) SCREW * More informationQuantity required : 1 |
||||||
|
26 |
B064070-WASHER More informationQuantity required : 1 |
||||||
|
27 |
887360-ASS. CANNOCCHIALE INFERIORE More informationQuantity required : 2 |
||||||
|
28 |
887586-SPACER DI CENTRAGGIO More informationQuantity required : 2 |
||||||
|
29 |
887359-ASS. CANNOCCHIALE SUPERIORE More informationQuantity required : 2 |
||||||
|
30 |
GU98690245-SCREW TCEI IX M5X45 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/4/4/img/132244.jpg)
31 |
GU90706461-O-RING 46, 04X3, 53 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/4/img/73444.jpg)
32 |
CATADIOPTRE AMBRE DE FORK OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-GU05781630 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/6/1/img/133161.jpg)
33 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98680445 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/6/6/img/132666.jpg)
34 |
WASHER PLATE (8, 4X14, 57X1, 6) OEM PIAGGIO COMMON A LA RANGE-GU95005308 More informationQuantity required : 1 |
