Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

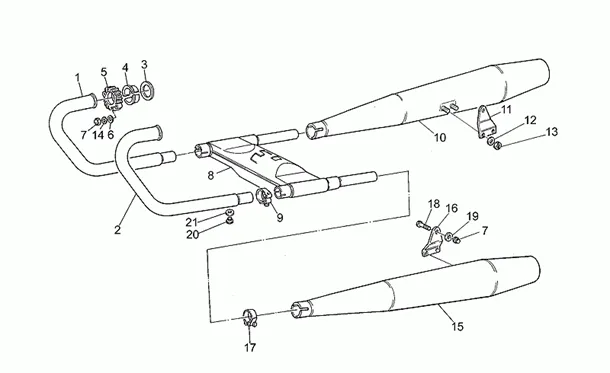

Chassis : 33.48 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.48.PNG)
1 |
GU03120902-TUBO SCARICO DX CROMATO More informationQuantity required : 1 |
||||||
|
1 |
Tuyau échappement d. |
||||||
|
2 |
GU03120903 - TUBO SCARICO SX CROMATO More informationQuantity required : 1 |
||||||
|
2 |
Tuyau échappement gche |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/5/0/1/img/125501.jpg)
3 |
GASKET EXHAUST SORTIE CYLINDER HEAD OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90718370 More informationQuantity required : 2 |
||||||
|
4 |
GU14121200 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
4 |
GU37121205 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
5 |
GU01121030-FLANGIA More informationQuantity required : 2 |
||||||
|
5 |
GU03121000 - BRIDE More informationQuantity required : 2 |
||||||
|
5 |
Bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/2/img/132562.jpg)
7 |
GU92781085-NUT BORGNE More informationQuantity required : 4 |
||||||
|
8 |
GU03123900-CAMERA ESPANSIONE More informationQuantity required : 1 |
||||||
|
8 |
CHAMBRE DE DETENDE |
||||||
|
9 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
10 |
GU03123000-SILENZIATORE DX CROMATO More informationQuantity required : 1 |
||||||
|
10 |
GU17123062-SILENCER D S17 More informationQuantity required : 1 |
||||||
|
11 |
GU03128600-PLATE DX More informationQuantity required : 1 |
||||||
|
12 |
GU95004208 - RONDELLE More informationQuantity required : 4 |
||||||
|
13 |
GU92630508 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/8/img/132678.jpg)
14 |
GU95007208 - RONDELLE More informationQuantity required : 4 |
||||||
|
15 |
GU03122900-SILENZIATORE SX CROMATO More informationQuantity required : 1 |
||||||
|
15 |
SILENCIEUX |
||||||
|
16 |
GU03128700-PLATE SX More informationQuantity required : 1 |
||||||
|
17 |
GU03123400-FASCETTA More informationQuantity required : 2 |
||||||
|
18 |
GU98230835 - VIS M8X35 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
19 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 2 |
||||||
|
20 |
GU98110007-CAP More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/5/7/4/img/130574.jpg)
21 |
GASKET CAP COUDE EXHAUST OEM COMMON A LA RANGE MOTO GUZZI-GU30109330 More informationQuantity required : 2 |
