Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

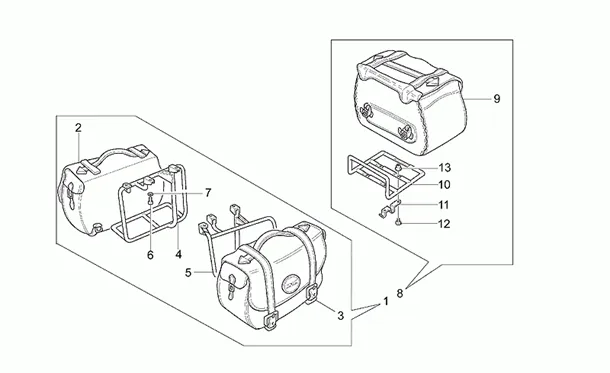

Chassis : 33.14 SACOCHES CUIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.14.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU03485736-BORSA SX CUOIO More informationQuantity required : 1 |
||||||
|
4 |
GU03485055-BRACKET VALIGIA DX More informationQuantity required : 1 |
||||||
|
5 |
GU03486555-BRACKET VALIGIA SX More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/2/0/0/img/133200.jpg)
6 |
SCREW BTR (8X40) OEM PIAGGIO COMMON A LA RANGE-GU98690440 More informationQuantity required : 4 |
||||||
|
6 |
SCREW BTR (8X45) OEM PIAGGIO COMMON A LA RANGE-GU98690445 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.jpg)
7 |
WASHER 8, 4X15X1, 8 COMMON A LA RANGE MOTO GUZZI/APRILIA-GU95008208 More informationQuantity required : 6 |
||||||
|
8 |
Kit coffre |
||||||
|
9 |
|
||||||
|
10 |
GU31487765-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
11 |
GU03487802-STAFFA More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/6/1/img/68461.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X20) OEM PIAGGIO COMMON A LA RANGE-672380 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
13 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 4 |
