Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

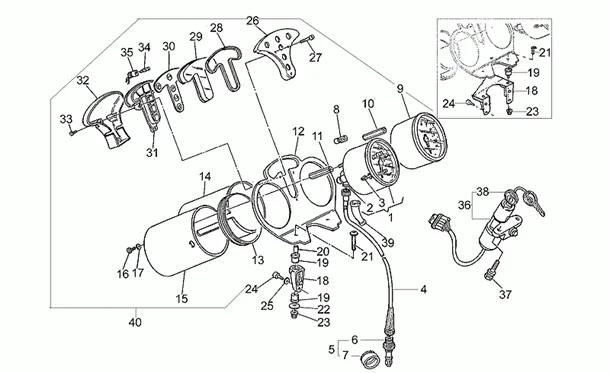

Chassis : 33.06 TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.06.PNG)
1 |
GU02761500 - COMPTEUR KILOMETRIQUE KMH BORLETTI More informationQuantity required : 1 |
||||||
|
1 |
GU02762400-TACHIMETRO MPH More informationQuantity required : 1 |
||||||
|
2 |
GU23768310 - RENVOI 60° More informationQuantity required : 1 |
||||||
|
3 |
GU02762800 - PULSANTE AZZERATORE More informationQuantity required : 1 |
||||||
|
4 |
Câble compteur km INOX |
||||||
|
5 |
Renvoi compteur km 5/10 |
||||||
|
6 |
Engrenage |
||||||
|
7 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/6/9/img/66269.jpg)
8 |
AMPOULE/LAMPE 12V 3W W2, 1X9, 5D OEM PIAGGIO COMMON A LA RANGE-294131 More informationQuantity required : 2 |
||||||
|
9 |
GU02767200 - ELECTRONIC REVOLUTION COUNTER More informationQuantity required : 1 |
||||||
|
9 |
CONTAGIRI ELETTRONICO |
||||||
|
10 |
GU02763400-DADO A COLONNA 45MM More informationQuantity required : 2 |
||||||
|
11 |
GU02763000 - COLONNETTA 40MM More informationQuantity required : 2 |
||||||
|
12 |
GU02764000 - BASE SUPPORTO STRUMENTI More informationQuantity required : 1 |
||||||
|
13 |
GU02762301-GOMMA More informationQuantity required : 2 |
||||||
|
14 |
GU02761900 - SUPPORT COMPTE-TOURS More informationQuantity required : 1 |
||||||
|
15 |
GU02762000 - SUPPORTO CONTAKM More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/6/1/img/132961.jpg)
16 |
SCREW BTR HEAD BOMBEE (5X10) OEM PIAGGIO COMMON A LA RANGE-GU98230510 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/4/7/img/132747.jpg)
17 |
WASHER ELASTIC (5. 3X10X0. 5) OEM PIAGGIO COMMON A LA RANGE-GU95129100 More informationQuantity required : 4 |
||||||
|
18 |
GU01766031-BRACKET CRUSCOTTO More informationQuantity required : 2 |
||||||
|
18 |
GU02766000 - SUPPORTO CRUSCOTTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/3/7/img/102337.jpg)
19 |
RUBBER DE INSTRUMENT CLUSTER OEM MOTO GUZZI V11 CALIFORNIA 1997 > 2004-GU02765500 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/1/img/73551.jpg)
19 |
RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023 More informationQuantity required : 4 |
||||||
|
20 |
GU91180721 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
21 |
GU98230609 - VIS More informationQuantity required : 2 |
||||||
|
21 |
GU98230640-SCREW More informationQuantity required : 2 |
||||||
|
22 |
GU95100144 - RONDELLE More informationQuantity required : 2 |
||||||
|
23 |
GU92650106 - ECROU BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/4/1/img/65941.jpg)
23 |
NUT FLANGE (6) OEM PIAGGIO COMMON A LA RANGE-219277 More informationQuantity required : 2 |
||||||
|
24 |
GU98682312-SCREW TCEI M6X12 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
24 |
SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-GU98682316 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/3/img/73553.jpg)
25 |
WASHER PLATE (6, 15X11X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU95008206 More informationQuantity required : 4 |
||||||
|
26 |
Boîtier témoins |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/8/img/70918.jpg)
27 |
SCREW BTR (4X16) OEM PIAGGIO COMMON A LA RANGE-959559 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/2/img/102342_20251023145219.jpg)
28 |
GASKET HOUSING TEMOIN INSTRUMENT CLUSTER OEM MOTO GUZZI V11 1999 > 2005-GU02768200 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/3/4/3/img/102343.jpg)
29 |
PROTECTOR/MOUSSE DE HOUSING TEMOINS DE INSTRUMENT CLUSTER OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA, V11, 750 NEVADA-GU02768400 More informationQuantity required : 1 |
||||||
|
30 |
Cache vitré témoins |
||||||
|
31 |
GU02766300 - SCATOLA PORTASPIE More informationQuantity required : 1 |
||||||
|
32 |
GU02766500-COVER INF * More informationQuantity required : 1 |
||||||
|
33 |
GU98872110-SCREW More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/6/0/img/65760.jpg)
34 |
AMPOULE/LAMPE 12V 1, 2W CULOT W2X4. 6D BULB T5 TEMOIN WHITE OEM PIAGGIO COMMON A LA RANGE-164634 More informationQuantity required : 6 |
||||||
|
35 |
GU02768600-PORTALAMPADA More informationQuantity required : 6 |
||||||
|
36 |
GU01782500 - BLOCCHETTO AVVIAMENTO-BLOCC. More informationQuantity required : 1 |
||||||
|
37 |
GU98260414-SCREW TSP ZB M4X14 More informationQuantity required : 2 |
||||||
|
38 |
GU30735500-CLE PAS CANTEE UNPAINTED More informationQuantity required : 1 |
||||||
|
39 |
GU17762200 - GAINE More informationQuantity required : 1 |
||||||
|
40 |
Tableau de bord |
