Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

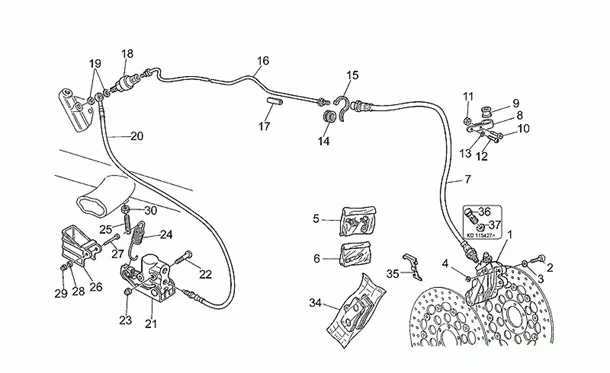

Chassis : 33.05 CORRECTEUR DE FREINAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.05.PNG)
1 |
GU01652230 - PINZA FRENO ANT.SX ORO More informationQuantity required : 1 |
||||||
|
1 |
GU03652300 - ETRIER FREIN AV G.GRIS More informationQuantity required : 1 |
||||||
|
1 |
GU30652202 - MACHOIRE FREIN AV G OR More informationQuantity required : 1 |
||||||
|
2 |
GU98622530 - VIS More informationQuantity required : 2 |
||||||
|
2 |
GU98623530-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
3 |
WASHER GEAR OIL PUMP (10, 5X16X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-AP8152220 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
3 |
WASHER AJUSTEMENT (10. 5X18X0. 8) OEM MOTO GUZZI-GU95129180 More informationQuantity required : 2 |
||||||
|
4 |
GU95100332-WASHER D'APPUI 0, 5 MM More informationQuantity required : 1 |
||||||
|
4 |
GU95100333 - RONDELLE D'APPUI 0,8 MM More informationQuantity required : 1 |
||||||
|
5 |
GU01659230-SPURGO + CAPPUCCIO More informationQuantity required : 2 |
||||||
|
5 |
GU30659200-PURGE + CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/1/9/2/6/img/101926.jpg)
6 |
PIVOT + SPRING BRAKE CALIPER OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU01659130 More informationQuantity required : 2 |
||||||
|
6 |
GU30659102-KIT PLAQUETTES More informationQuantity required : 2 |
||||||
|
7 |
GU03658800 - TUBE FREIN More informationQuantity required : 1 |
||||||
|
7 |
GU03658801-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
8 |
GU03658300-CLAMP More informationQuantity required : 1 |
||||||
|
9 |
GU17658260 - BAGUE More informationQuantity required : 1 |
||||||
|
10 |
GU98280410 - VIS More informationQuantity required : 1 |
||||||
|
11 |
GU92630104-NUT M4X0, 7 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/0/5/7/img/133057.jpg)
12 |
SCREW BTR HEAD BOMBEE (6X14) OEM PIAGGIO COMMON A LA RANGE-GU98370614 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
13 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 1 |
||||||
|
14 |
GU91551120 - BAGUE More informationQuantity required : 1 |
||||||
|
15 |
GU14609650-CLAMP 3, 6X20, 6 More informationQuantity required : 1 |
||||||
|
16 |
GU30658760-HOSE More informationQuantity required : 1 |
||||||
|
17 |
GU17659650 - SEGMENT D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
18 |
GU03668500-VALVE 4, 5 BAR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
19 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
||||||
|
20 |
GU03656200-TUBE BRAKE More informationQuantity required : 1 |
||||||
|
21 |
GU03668200-CORRECTEUR DE FREINAGE More informationQuantity required : 1 |
||||||
|
22 |
GU98230841-SCREW M8X40 More informationQuantity required : 2 |
||||||
|
23 |
GU92630108-NUT More informationQuantity required : 2 |
||||||
|
24 |
GU03668801-SPRING More informationQuantity required : 1 |
||||||
|
25 |
GU03667300-SCREW CLUTCH More informationQuantity required : 1 |
||||||
|
26 |
GU03668900-PROTECTOR SPRING More informationQuantity required : 1 |
||||||
|
27 |
GU98052250-SCREW More informationQuantity required : 1 |
||||||
|
28 |
GU95004205-WASHER More informationQuantity required : 1 |
||||||
|
29 |
GU92630205 - ECROU More informationQuantity required : 1 |
||||||
|
30 |
GU92602408-NUT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/1/7/img/73417.jpg)
34 |
PLATE BRAKE OEM PIAGGIO MOTO-GUZZI 750 V-7 AV, NEVADA AV, BREVA AV, 850 GRISO AV, BREVA AV, 1100 BREVA AV, CALIFORNIA AV, 1200 GRISO AV, NORGE AV, STELVIO AV, BREVA AV (PAIRE)-GU01654630 More informationQuantity required : 2 |
||||||
|
34 |
GU30654602 - PLAQUETTES-PAIRE More informationQuantity required : 2 |
||||||
|
35 |
GU01659131-MOLLA More informationQuantity required : 1 |
||||||
|
36 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
|
37 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
