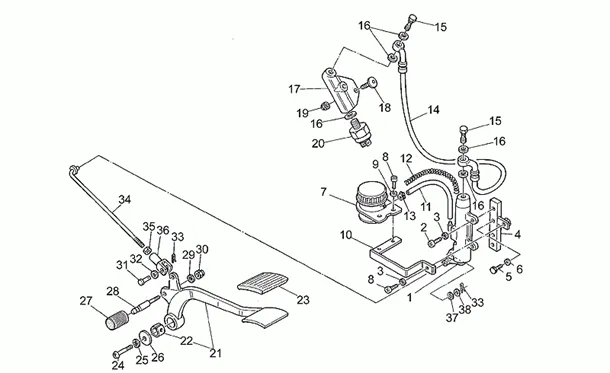

Chassis : 33.22 POMPE FREIN ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.22.PNG)
1 |
GU31666990-MAIT. CYL. BRAKE REAR More informationQuantity required : 1 |
||||||
|
2 |
GU98622320-SCREW More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/2/img/71912.jpg)
3 |
WASHER (6, 4X10X, 7) OEM PIAGGIO COMMON A LA RANGE-AP8152105 More informationQuantity required : 3 |
||||||
|
4 |
GU30666760-PLATE BRACKET More informationQuantity required : 1 |
||||||
|
5 |
GU98054412 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
6 |
WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901 More informationQuantity required : 2 |
||||||
|
7 |
GU65663500 - RESERV.HUILE FREINS More informationQuantity required : 1 |
||||||
|
8 |
GU98622310-SCREW More informationQuantity required : 3 |
||||||
|
9 |
GU95000206-WASHER More informationQuantity required : 2 |
||||||
|
10 |
GU30666060-PLAQ. RESERV. OIL More informationQuantity required : 1 |
||||||
|
11 |
GU00823950050-T GOMMA 5X9 More informationQuantity required : 1 |
||||||
|
12 |
GU30665860 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/7/1/8/3/img/157183.jpg)
13 |
GU19157800 - COLLIER More informationQuantity required : 2 |
||||||
|
14 |
GU03658500-TUYAX FLEX. PUMP VALVE RETAR More informationQuantity required : 1 |
||||||
|
15 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
16 |
WASHER HOSE BRAKE (10X1. 5X1) OEM MOTO GUZZI COMMON A LA RANGE-GU25656100 More informationQuantity required : 2 |
||||||
|
17 |
GU17656850 - REPARTITEUR More informationQuantity required : 1 |
||||||
|
18 |
GU98230616-SCREW More informationQuantity required : 1 |
||||||
|
19 |
GU92630206-NUT M6X1 More informationQuantity required : 1 |
||||||
|
20 |
STOP LIGHT SWITCH - ON REAR MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO-GUZZI 1980>2000 -GU63657000- More informationQuantity required : 1 |
||||||
|
21 |
GU03675900-BRAKE LEVER AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/9/2/7/img/130927.jpg)
22 |
GU30678160-BUSH More informationQuantity required : 1 |
||||||
|
23 |
GU43262180-PEDALE EN CAOUTCH. More informationQuantity required : 1 |
||||||
|
24 |
GU98230816-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
25 |
WASHER ELASTIC (8X15X0. 3) OEM PIAGGIO COMMON A LA RANGE-GU61270300 More informationQuantity required : 1 |
||||||
|
26 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/7/img/129167.jpg)
27 |
RUBBER DE PEDALE STAND OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU13432640 More informationQuantity required : 1 |
||||||
|
28 |
GU18678350 - PIVOT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
29 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 1 |
||||||
|
30 |
GU92602206-NUT More informationQuantity required : 1 |
||||||
|
31 |
GU95770265 - GOUPILLE More informationQuantity required : 1 |
||||||
|
32 |
GU95129110 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/6/4/img/132764.jpg)
33 |
GOUPILLE OEM MOTO GUZZI COMMON A LA RANGE-GU95500222 More informationQuantity required : 2 |
||||||
|
34 |
GU03675170-TIRANT More informationQuantity required : 1 |
||||||
|
35 |
GU92690073 - ECROU More informationQuantity required : 1 |
||||||
|
36 |
GU95740175-FOURCHETTE More informationQuantity required : 1 |
||||||
|
37 |
GU95129130-WASHER ELASTIC More informationQuantity required : 1 |
||||||
|
38 |
GU95100173-WASHER More informationQuantity required : 1 |
