Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1100 California EV 1100 1997-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

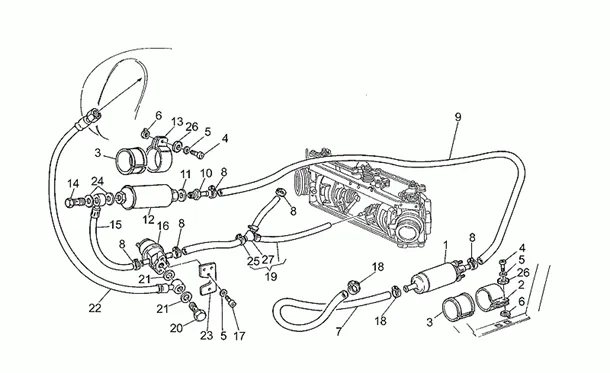

Chassis : 33.34 ALIMENTATION I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/477/California_EV_1100_1997-2000_33.34.PNG)
1 |
GU29107261 - POMPE ESSENCE More informationQuantity required : 1 |
||||||
|
2 |
GU29107360-CLAMP More informationQuantity required : 1 |
||||||
|
3 |
GU29105860-PROTECTOR CAOUTCH. More informationQuantity required : 2 |
||||||
|
4 |
GU98622318 - VIS M6X18 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
5 |
WASHER SPRING (6. 7X11. 8X0. 4) OEM PIAGGIO COMMON A LA RANGE-GU61013800 More informationQuantity required : 5 |
||||||
|
6 |
GU92660601-NUT EN CAGE More informationQuantity required : 3 |
||||||
|
7 |
GU03106500 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
GU93305017-CLAMP More informationQuantity required : 6 |
||||||
|
9 |
GU30106170 - TUYAN DE LA POMPE AU FILTRE More informationQuantity required : 1 |
||||||
|
10 |
GU30106800-FITTING More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/1/8/img/129418.jpg)
11 |
WASHER ETANCHEITE (14. 25X22X1) OEM PIAGGIO COMMON A LA RANGE-GU18161150 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/3/5/1/img/130351.jpg)
12 |
FUEL FILTER MOTO OEM PIAGGIO MOTO-GUZZI 1100 CALIFORNIA 1994 > 2002, 1000 QUOTA 1992 > 1997 (M14X12)-GU29106061 More informationQuantity required : 1 |
||||||
|
13 |
GU29113860-CLAMP More informationQuantity required : 1 |
||||||
|
14 |
GU29109161-SCREW CREUSE More informationQuantity required : 1 |
||||||
|
15 |
GU30108270 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
16 |
Régul.pression ess. |
||||||
|
17 |
GU98682312-SCREW TCEI M6X12 More informationQuantity required : 2 |
||||||
|
18 |
GU12157900-CLAMP More informationQuantity required : 2 |
||||||
|
19 |
Tuyau essence |
||||||
|
20 |
GU29107960 - VIS CREUSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/2/5/img/129125.jpg)
21 |
WASHER PLATE (8, 25X15X1) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU12154200 More informationQuantity required : 2 |
||||||
|
22 |
GU30108770 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
23 |
Plaque |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/5/1/8/5/img/125185.jpg)
24 |
GASKET/GARNITURE 12, 25 OEM PIAGGIO COMMON A LA RANGE MOTO GUZZI-GU12006400 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/1/3/3/img/130133_20251023145539.jpg)
25 |
CLAMP CLIC (12. 5X8) OEM PIAGGIO COMMON A LA RANGE-GU28157950 More informationQuantity required : 3 |
||||||
|
26 |
GU95100141-WASHER 6, 5X20X2 More informationQuantity required : 3 |
||||||
|
27 |
GU29106860 - RACCORD 3 VOIES More informationQuantity required : 1 |
