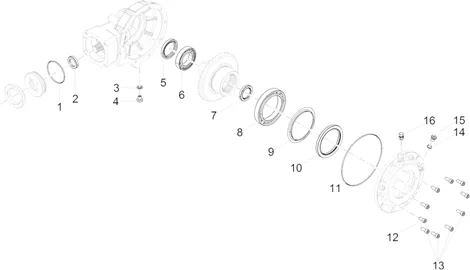

Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA) MOTO-GUZZI

Moteur : 03.35 LA TRANSMISSION ARRIÈRE / COMPOSANTS
La transmission arrière / Composants
Search
B064032 - BAGUE D'ETANCHEITE

1
P2R reference P2R reference 141210
Maker reference Maker reference B064032

B064032-BUSH D'ETANCHEITE

More information

Quantity required : 1

B064029 - BAGUE D'ETANCHEITE

2
P2R reference P2R reference 141207
Maker reference Maker reference B064029

B064029-BUSH D'ETANCHEITE

More information

Quantity required : 1

GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930

3
P2R reference P2R reference 101690
Maker reference Maker reference GU01528930

GASKET (10X18X1. 5) CAP DE VIDANGE OEM PIAGGIO FOR MOTORCYCLE-GUZZI BREVA, GRISO, NEVADA, NORGE, STELVIO, V-7, V-9, V-11, SPORT, CALIFORNIA, AUDACE, ELDORADO, BELAGIO-GU01528930

More information

Quantity required : 1

CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766

4
P2R reference P2R reference 131022
Maker reference Maker reference GU31003766

CAP VIDANGE OIL ENGINE/BV/PONT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU31003766

More information

Quantity required : 1

B064031 - BAGUE D'ETANCHEITE

5
P2R reference P2R reference 141209
Maker reference Maker reference B064031

B064031-BUSH D'ETANCHEITE

More information

Quantity required : 1

B064037 - ROULEMENT A BILLES

6
P2R reference P2R reference 141211
Maker reference Maker reference B064037

B064037-BALL BEARING

More information

Quantity required : 1

B064030 - BAGUE D'ETANCHEITE

7
P2R reference P2R reference 141208
Maker reference Maker reference B064030

B064030-BUSH D'ETANCHEITE

More information

Quantity required : 1

GU92208518 - ROULEMENT A BILLES 85X120X18

8
P2R reference P2R reference 132407
Maker reference Maker reference GU92208518

GU92208518-BALL BEARING 85X120X18

More information

Quantity required : 1

B064041 - PANEL

9
P2R reference P2R reference 141212
Maker reference Maker reference B064041

B064041-PANEL

More information

Quantity required : 1

GASKET CASING DE TRANSMISSION (85X110X8) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90408511

10
P2R reference P2R reference 132199
Maker reference Maker reference GU90408511

GASKET CASING DE TRANSMISSION (85X110X8) OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU90408511

More information

Quantity required : 1

B064119 - BAGUE D'ETANCHEITE

11
P2R reference P2R reference 141213
Maker reference Maker reference B064119

B064119 - BAGUE D'ETANCHEITE

More information

Quantity required : 1

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

12
P2R reference P2R reference 66335
Maker reference Maker reference 319165

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

More information

Quantity required : 1

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

13
P2R reference P2R reference 71829
Maker reference Maker reference AP8150169

SCREW BTR (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8150169

More information

Quantity required : 9

GU90718120 - RONDELLE

14
P2R reference P2R reference 132261
Maker reference Maker reference GU90718120

GU90718120 - RONDELLE

More information

Quantity required : 1

GU05351230 - BOUCHON HUILE M12X1,5

15
P2R reference P2R reference 128679
Maker reference Maker reference GU05351230

GU05351230-CAP OIL M12X1, 5

More information

Quantity required : 1

B064044 - BOUCHON PURGE

16
P2R reference P2R reference 146858
Maker reference Maker reference B064044

B064044 - BOUCHON PURGE

More information

Quantity required : 1
