Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA) MOTO-GUZZI

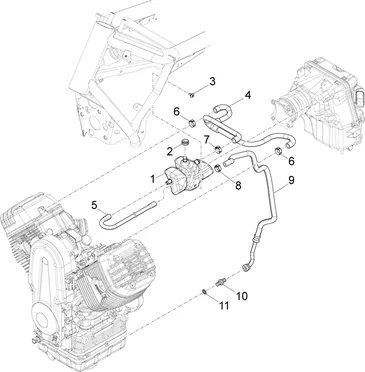

Moteur : 03.196 INSTALLATION BLOW-BY
Installation Blow-by
Search
887786 - SERBATOIO BLOW-BY

1
P2R reference P2R reference 99511
Maker reference Maker reference 887786

887786-TANK BLOW-BY

More information

Quantity required : 1

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

2
P2R reference P2R reference 71384
Maker reference Maker reference AP8120030

RUBBER/SPACER OEM PIAGGIO COMMON A LA RANGE-AP8120030

More information

Quantity required : 1

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

3
P2R reference P2R reference 71894
Maker reference Maker reference AP8150500

SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE-AP8150500

More information

Quantity required : 1

B063620 - TUBO A TRE VIE

4
P2R reference P2R reference 101139
Maker reference Maker reference B063620

B063620-TUBO A TRE VIE

More information

Quantity required : 1

B063778 - TUBO SFIATO BLOW-BY

5
P2R reference P2R reference 101164
Maker reference Maker reference B063778

B063778-TUBO SFIATO BLOW-BY

More information

Quantity required : 1

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

6
P2R reference P2R reference 72866
Maker reference Maker reference CM001904

CLAMP HOSE (19. 8MM) OEM PIAGGIO COMMON A TOUTE LA RANGE-CM001904

More information

Quantity required : 2

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

7
P2R reference P2R reference 71172
Maker reference Maker reference AP8102349

CLAMP CLIC (17, 5X8) OEM PIAGGIO COMMON A LA RANGE-AP8102349

More information

Quantity required : 1

CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765

8
P2R reference P2R reference 71198
Maker reference Maker reference AP8102765

CLAMP CLIC (13. 5X6) OEM PIAGGIO COMMON A LA RANGE-AP8102765

More information

Quantity required : 1

2B001407 - TUYAU HUILE

9
P2R reference P2R reference 127849
Maker reference Maker reference 2B001407

2B001407-HOSE OIL

More information

Quantity required : 1

GU01161331 - REDUCTION

10
P2R reference P2R reference 73411
Maker reference Maker reference GU01161331

GU01161331-REDUCTION

More information

Quantity required : 1

GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230

11
P2R reference P2R reference 73410
Maker reference Maker reference GU01154230

GASKET OIL OEM PIAGGIO MOTO-GUZZI 1200 NORGE, SPORT, BREVA, GRISO, STELVI, 1400 CALIFORNIA, AUDACE/APRILIA 750 DORSODURO, SHIVER, 1200 CAPONORD-GU01154230

More information

Quantity required : 1
