Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

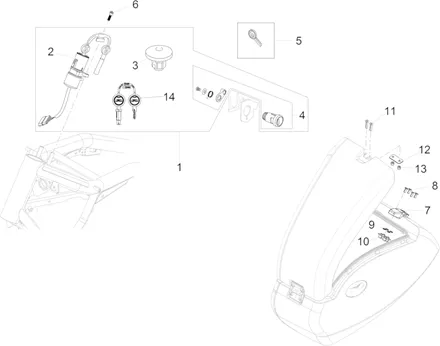

Carrosserie : 02.17 SERRURES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/924/California_1400_Touring_E4_ABS_2017_(EMEA)_02.17.png)
1 |
B063709-(*) KIT SERRATURE CON CAP More informationQuantity required : 1 |
||||||
|
2 |
2D000003 - COMMUTATORE BLOCCASTERZO CON CHIAVI More informationQuantity required : 1 |
||||||
|
3 |
883476-* CAP TANK V7 USA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/2/6/6/img/100266.jpg)
4 |
977527-SERRATURA BAULETTO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/1/8/7/img/98187.jpg)
5 |
EBAUCHE DE CLE OEM PIAGGIO MOTO-GUZZI 1400 CALIFORNIA 2012 >, ELDORADO 2015 >, AUDACE 2015 >, MGX-21 2016 >, 850 V9 2016 >-2D000004 More informationQuantity required : 1 |
||||||
|
6 |
GU98682414-SCREW M8X14 More informationQuantity required : 2 |
||||||
|
7 |
B063574-SERRATURA VALIGIA More informationQuantity required : 1 |
||||||
|
8 |
B063736-SCREW TSPEI IX M3X8 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/6/3/img/70463.jpg)
9 |
O-RING OEM APRILIA COMMON A LA RANGE-873097 More informationQuantity required : 4 |
||||||
|
10 |
B063584-PIASTRINA SERRATURA CON PI More informationQuantity required : 1 |
||||||
|
11 |
B064048-SCREW More informationQuantity required : 2 |
||||||
|
12 |
B064143-PLATE AGGANCIO SERRATURA More informationQuantity required : 1 |
||||||
|
13 |
B005195 NUT More informationQuantity required : 2 |
||||||
|
14 |
2D000006-SERRATURA CAP CON CHIAVI More informationQuantity required : 1 |
