Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

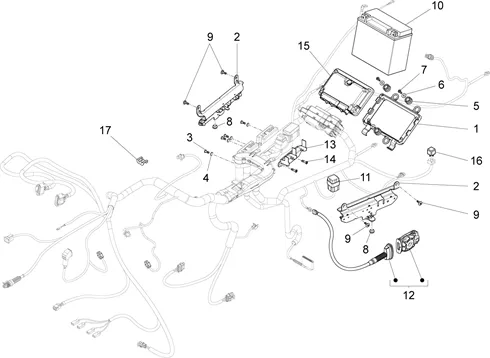

Dispositifs électriques : 11.03 CIRCUIT ELECTRIQUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/924/California_1400_Touring_E4_ABS_2017_(EMEA)_11.03.png)
1 |
858882-BRACKET CENTRE More informationQuantity required : 1 |
|||||||||
|
2 |
B063013-BRACKET RELAY More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/7/img/71897.jpg)
3 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/5/img/71895.jpg)
4 |
WASHER PLATE (4. 3X12X1) OEM PIAGGIO COMMON A LA RANGE-AP8150501 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/7/1/img/72271.jpg)
5 |
RUBBER SILENBLOC OEM APRILIA/MOTO GUZZI COMMON A LA RANGE-AP8220150 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
6 |
WASHER PLATE (5, 5X15X1, 2) OEM PIAGGIO COMMON A LA RANGE More informationQuantity required : 3 |
|||||||||
|
7 |
SCREW CRUCIFORME (5X15) TARAUD OEM PIAGGIO COMMON A LA RANGE-AP8150509 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/6/img/71276.jpg)
8 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8112600 More informationQuantity required : 2 |
|||||||||
|
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
9 |
SCREW BTR DE FAIRING (5X12) OEM PIAGGIO COMMON A LA RANGE-2B014101 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/4/9/img/70749.jpg)
10 |
BATTERY 12V 20AH YT20-BS OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-883818 More informationQuantity required : 1 |
|||||||||
|
11 |
896715-RUBBER More informationQuantity required : 1 |
|||||||||
|
12 |
ELECTRONIC ALARM "PIAGGIO GENUINE PART" FOR MOTO GUZZI 1400 CALIFORNIA, AUDACE, ELDORADO 2015> -2D000027- More informationQuantity required : 1 |
|||||||||
|
13 |
B063806-BRACKET FUSIBILI More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/0/img/71970.jpg)
14 |
SCREW PARKER (5X20) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8152329 More informationQuantity required : 2 |
|||||||||
|
15 |
CM267201-CENTRE ELECT. More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/2/7/img/70827.jpg)
16 |
RELAIS INJECTION OEM PIAGGIO COMMON A LA RANGE MOTO APRILIA ET MOTO-GUZZI-895481 More informationQuantity required : 1 |
|||||||||
|
17 |
896675-BRACKET More informationQuantity required : 2 |
|||||||||
