Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA) MOTO-GUZZI

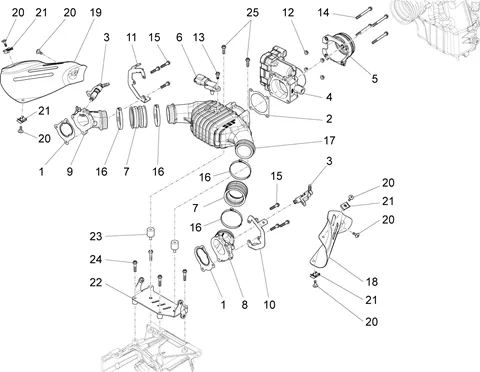

Moteur : 03.06 CORPS À PAPILLON
Corps à papillon
Search
887979 - GUARNIZIONE TESTA RACCORDO AMMISSIONE

1
P2R reference P2R reference 99646
Maker reference Maker reference 887979

887979-GUARNIZIONE TESTA RACCORDO AMMISSIONE

More information

Quantity required : 2

GASKET BODY THROTTLE BODY OEM APRILIA 750-900-1200 SHIVER, DORSODURO/MOTO GUZZI AUDACE, CALIFORNIA, V85-872264

2
P2R reference P2R reference 70424
Maker reference Maker reference 872264

GASKET BODY THROTTLE BODY OEM APRILIA 750-900-1200 SHIVER, DORSODURO/MOTO GUZZI AUDACE, CALIFORNIA, V85-872264

More information

Quantity required : 1

B063442 - INIETTORE IWP243

3
P2R reference P2R reference 101116
Maker reference Maker reference B063442

B063442 - INIETTORE IWP243

More information

Quantity required : 2

1A023630 - THROTTLE BODY

4
P2R reference P2R reference 203449
Maker reference Maker reference 872230

1A023630-THROTTLE BODY

More information

Quantity required : 1

1A023630 - THROTTLE BODY

4
P2R reference P2R reference 203449
Maker reference Maker reference 1A023630

1A023630-THROTTLE BODY

More information

Quantity required : 1

B063333 - (*)TROMBONCINO CORPO FARFALLATO

5
P2R reference P2R reference 101100
Maker reference Maker reference B063333

B063333-(*) TROMBONCINO CORPO FARFALLATO

More information

Quantity required : 1

SENSOR/SONDE DE TEMPERATURE AIR OEM PIAGGIO 500-530 2021 >/MOTO GUZZI V85, V100 2019 >-887015

6
P2R reference P2R reference 99295
Maker reference Maker reference 887015

SENSOR/SONDE DE TEMPERATURE AIR OEM PIAGGIO 500-530 2021 >/MOTO GUZZI V85, V100 2019 >-887015

More information

Quantity required : 1

887808 - MANICOTTO CORPO FARF/RACCORD AMMIS

7
P2R reference P2R reference 99521
Maker reference Maker reference 887808

887808-MANICOTTO CORPO FARF/FITTING AMMIS

More information

Quantity required : 2

8871714 - RACCORDO DI AMMISSIONE SX 1400

8
P2R reference P2R reference 99334
Maker reference Maker reference 8871714

8871714-RACCORDO DI AMMISSIONE SX 1400

More information

Quantity required : 1

8871724 - RACCORDO DI AMMISSIONE DX 1400

9
P2R reference P2R reference 99335
Maker reference Maker reference 8871724

8871724-RACCORDO DI AMMISSIONE DX 1400

More information

Quantity required : 1

B063160 - STAFFA SUPP COVER CORPO FARF SX

10
P2R reference P2R reference 101027
Maker reference Maker reference B063160

B063160-STAFFA SUPP COVER CORPO FARF SX

More information

Quantity required : 1

B063161 - STAFFA SUPP COVER CORPO FARF DX

11
P2R reference P2R reference 101028
Maker reference Maker reference B063161

B063161-STAFFA SUPP COVER CORPO FARF DX

More information

Quantity required : 1

887282 - BUSSOLA A T

12
P2R reference P2R reference 99363
Maker reference Maker reference 887282

887282-BUSSOLA A T

More information

Quantity required : 4

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

13
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 1

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

14
P2R reference P2R reference 72705
Maker reference Maker reference B016425

SCREW FLANGE TH (6X60) OEM PIAGGIO COMMON A LA RANGE-B016425

More information

Quantity required : 4

SCREW FLANGE BTR OEM PIAGGIO COMMON A LA RANGE-B017633

15
P2R reference P2R reference 72770
Maker reference Maker reference B017633

SCREW FLANGE BTR OEM PIAGGIO COMMON A LA RANGE-B017633

More information

Quantity required : 6

CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-857306

16
P2R reference P2R reference 69757
Maker reference Maker reference 857306

CLAMP SERRAGE TUBE OEM PIAGGIO COMMON A LA RANGE APRILIA/MOTO GUZZI-857306

More information

Quantity required : 4

2A000578 - ENSEMBLE VOLUME EXPANSION

17
P2R reference P2R reference 127811
Maker reference Maker reference 2A000578

2A000578-ENSEMBLE VOLUME EXPANSION

More information

Quantity required : 1

B063158 - COVER CORPO FARFALLATO SX

18
P2R reference P2R reference 101025
Maker reference Maker reference B063158

B063158-COVER CORPO FARFALLATO SX

More information

Quantity required : 1

B063159 - COVER CORPO FARFALLATO DX

19
P2R reference P2R reference 101026
Maker reference Maker reference B063159

B063159-COVER CORPO FARFALLATO DX

More information

Quantity required : 1

976614 - VITE TCCCE IX M5X15

20
P2R reference P2R reference 99900
Maker reference Maker reference 976614

976614-SCREW TCCCE IX M5X15

More information

Quantity required : 6

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

21
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375

More information

Quantity required : 4

886869 - STAFFA SUPPORTO PLENUM

22
P2R reference P2R reference 99235
Maker reference Maker reference 886869

886869-STAFFA BRACKET PLENUM

More information

Quantity required : 1

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

23
P2R reference P2R reference 73551
Maker reference Maker reference GU93222023

RUBBER MOUNT OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI-GU93222023

More information

Quantity required : 2

SCREW FLANGE BTR OEM PIAGGIO COMMON A LA RANGE-B017633

24
P2R reference P2R reference 72770
Maker reference Maker reference B017633

SCREW FLANGE BTR OEM PIAGGIO COMMON A LA RANGE-B017633

More information

Quantity required : 4

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

25
P2R reference P2R reference 151683
Maker reference Maker reference AP8152278

SCREW FLANGE TH (6X16) OEM PIAGGIO COMMON A LA RANGE-AP8152278

More information

Quantity required : 2
