Vehicle Exploded View - MOTO-GUZZI CALIFORNIA 1400 Touring E4 ABS 2017 (EMEA) MOTO-GUZZI

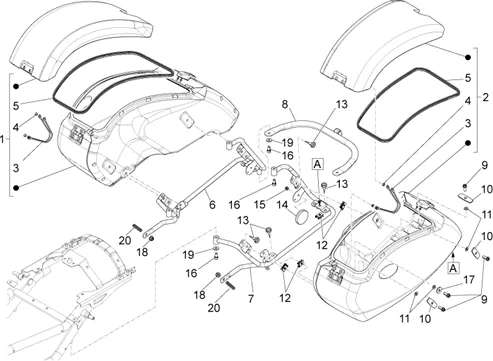

Carrosserie : 02.165 SIDE CASES
Side cases
Search
B06325400XN2 - (*)VALIGIA DX NERO COMP

1
P2R reference P2R reference 101068
Maker reference Maker reference B06325400XN2

B06325400XN2-(*) VALIGIA DX NERO COMP

More information

Quantity required : 1

B0632540000YR5 - VALIGIA DX ROSSO

1
P2R reference P2R reference 101066
Maker reference Maker reference B0632540000YR5

B0632540000YR5-VALIGIA DX ROSSO

More information

Quantity required : 1

B0632550000YR5 - VALIGIA SX ROSSO

2
P2R reference P2R reference 101069
Maker reference Maker reference B0632550000YR5

B0632550000YR5-VALIGIA SX ROSSO

More information

Quantity required : 1

B06325500XN2 - (*)VALIGIA SX NERO COMP

2
P2R reference P2R reference 101071
Maker reference Maker reference B06325500XN2

B06325500XN2-(*) VALIGIA SX NERO COMP

More information

Quantity required : 1

AP8201855 - CABLE COFFRE AR;

3
P2R reference P2R reference 72147
Maker reference Maker reference AP8201855

AP8201855-CABLE UNDERSEAT COMPARTMENT AR

More information

Quantity required : 2

AP8706322 - BOCCOLA AGGANCIO CAVALLETTO

4
P2R reference P2R reference 100927
Maker reference Maker reference AP8706322

AP8706322-BOCCOLA AGGANCIO CAVALLETTO

More information

Quantity required : 4

B063587 - GUARNIZIONE VALIGIA

5
P2R reference P2R reference 101132
Maker reference Maker reference B063587

B063587-GUARNIZIONE VALIGIA

More information

Quantity required : 2

887946 - SUPPORTO VALIGIA DX

6
P2R reference P2R reference 99618
Maker reference Maker reference 887946

887946-BRACKET VALIGIA DX

More information

Quantity required : 1

887945 - SUPPORTO VALIGIA SX

7
P2R reference P2R reference 99617
Maker reference Maker reference 887945

887945-BRACKET VALIGIA SX

More information

Quantity required : 1

B063632 - TUBO POSTERIORE PARAURTI BORSA CON P.I.

8
P2R reference P2R reference 101142
Maker reference Maker reference B063632

B063632-TUBO POSTERIORE PARAURTI BORSA CON P. I.

More information

Quantity required : 1

B063289 - TUBO COLLEGAMENTO CON PI

8
P2R reference P2R reference 101082
Maker reference Maker reference B063289

B063289-TUBO COLLEGAMENTO CON PI

More information

Quantity required : 1

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

9
P2R reference P2R reference 71948
Maker reference Maker reference AP8152286

SCREW FLANGE TH (8X20) OEM PIAGGIO COMMON A LA RANGE-AP8152286

More information

Quantity required : 6

B063932 - PIASTRINA FISSAGGIO VALIGIE

10
P2R reference P2R reference 101202
Maker reference Maker reference B063932

B063932-PIASTRINA FISSAGGIO VALIGIE

More information

Quantity required : 6

WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592

11
P2R reference P2R reference 71406
Maker reference Maker reference AP8120592

WASHER PLATE (D5) OEM PIAGGIO COMMIUN A LA RANGE-AP8120592

More information

Quantity required : 8

NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268

12
P2R reference P2R reference 67114
Maker reference Maker reference 575268

NUT SHEET METAL (M8) OEM PIAGGIO COMMON A LA RANGE-575268

More information

Quantity required : 8

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

13
P2R reference P2R reference 72275
Maker reference Maker reference AP8220238

RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220238

More information

Quantity required : 16

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

14
P2R reference P2R reference 72325
Maker reference Maker reference AP8224164

CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164

More information

Quantity required : 2

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

15
P2R reference P2R reference 71963
Maker reference Maker reference AP8152306

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066

More information

Quantity required : 2

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

16
P2R reference P2R reference 66335
Maker reference Maker reference 319165

SCREW BTR (8X16) OEM PIAGGIO COMMON A LA RANGE-319165

More information

Quantity required : 6

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018

17
P2R reference P2R reference 71810
Maker reference Maker reference AP8150018

WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018

More information

Quantity required : 1

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

18
P2R reference P2R reference 71959
Maker reference Maker reference AP8152300

NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300

More information

Quantity required : 2

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

19
P2R reference P2R reference 73448
Maker reference Maker reference GU14615901

WASHER (8, 4X13X0, 8) OEM PIAGGIO COMMON A LA RANGE-GU14615901

More information

Quantity required : 6

B064079 - PERNO FILETTATO

20
P2R reference P2R reference 101260
Maker reference Maker reference B064079

2B004844-PERNO FILETTATO

More information

Quantity required : 2
