Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

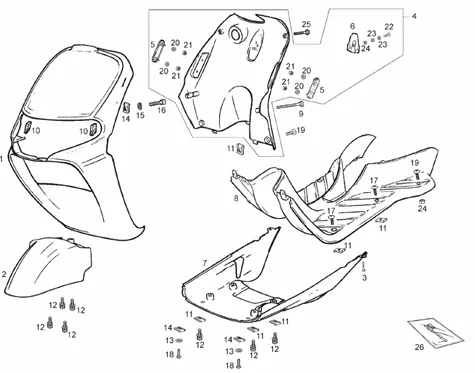

Suspensions - roues : 9 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_9.png)
1 |
20G01502351-LEG SHIELD AV. More informationQuantity required : 1 |
||||||
|
2 |
86409200WG55 - R-GUARDAB.DLNT.MET.CROM.ATL.07 More informationQuantity required : 1 |
||||||
|
2 |
00G007130225 - GARDE BOUE AV. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/2/img/63682.jpg)
3 |
00011051601 - VIS TARAUD 5,1X16 NOIR CL89H More informationQuantity required : 1 |
||||||
|
4 |
00G06803434-CONTRE-LEG SHIELD COMPLETE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/9/img/71569.jpg)
5 |
CATADIOPTRE AMBRE OEM PIAGGIO COMMON A LA RANGE-AP8124719 More informationQuantity required : 1 |
||||||
|
6 |
00G06301103 - CROCHET More informationQuantity required : 1 |
||||||
|
7 |
00G05902863 - PROTECTION INF.CHASSIS More informationQuantity required : 1 |
||||||
|
8 |
00G01504093-REST-FOOT More informationQuantity required : 1 |
||||||
|
9 |
00011055001-SCREW TARAUD 5X50 BLACK CL89H More informationQuantity required : 1 |
||||||
|
10 |
00G05700101 - BUTEE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
11 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/0/8/img/65008.jpg)
12 |
SCREW CRUCIFORME (6X16) BOCAL COOLING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2005 > 2015/APRILIA SX, RX-00H05900021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
13 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
14 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/9/6/img/69496.jpg)
15 |
WASHER PLATE (5X10) OEM PIAGGIO COMMON A LA RANGE-847226 More informationQuantity required : 1 |
||||||
|
16 |
VIS T.CREUSE 5M80X15 D912/8.8 |
||||||
|
17 |
00G01504701 - BOULON SER. More informationQuantity required : 1 |
||||||
|
18 |
00012151500-SCREW A HEAD RONDE A FENTES C More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/9/2/img/63992.jpg)
19 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701 More informationQuantity required : 1 |
||||||
|
20 |
WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/8/8/img/63588.jpg)
21 |
NUT AUTOBLOQUANT/NYLSTOP (M4X70) OEM PIAGGIO COMMON A LA RANGE-00000023040 More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/5/9/0/img/63590.jpg)
24 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/8/3/img/63683.jpg)
25 |
SCREW CRUCIFORME (5. 1X18) TARAUD OEM PIAGGIO COMMON A LA RANGE-00011051801 More informationQuantity required : 1 |
||||||
|
26 |
86397800WG5-R-CTO. KIT CALCAS ATLANTIS MET. CROM. 4T 0 More informationQuantity required : 1 |
||||||
|
26 |
86397800WN0 - R-CTO.KIT CALCAS ATLANTIS NGR.OMB.4T 07 More informationQuantity required : 1 |
