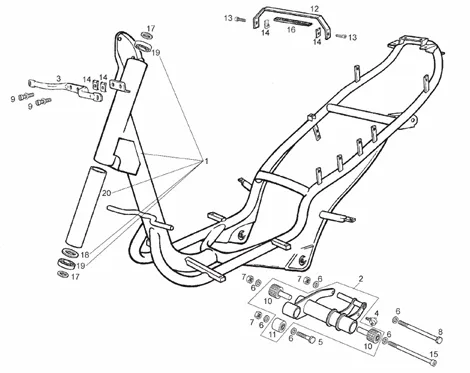

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

Châssis - parties plastiques - carrosseries : 1 BÉQUILLE
Béquille
Search
864124 - R-CTO CUADRO C/COJINETES ATLANTIS 50CC

1
P2R reference P2R reference 193775
Maker reference Maker reference 864124

864124 - R-CTO CUADRO C/COJINETES ATLANTIS 50CC

More information

Quantity required : 1

86377200W03 - ENSEM.SUP.MOTEUR A/SILENTB.

2
P2R reference P2R reference 193776
Maker reference Maker reference 86377200W03

86377200W03 - ENSEM.SUP.MOTEUR A/SILENTB.

More information

Quantity required : 1

00G04802891A - SOPTE.ESCUDO FRONTAL ATLANTIS (C)

3
P2R reference P2R reference 64127
Maker reference Maker reference 00G04802891A

00G04802891A-SOPTE. ESCUDO FRONTAL ATLANTIS (C)

More information

Quantity required : 1

863553 - BRIDA PASACABLE D 12,7

4
P2R reference P2R reference 193777
Maker reference Maker reference 863553

863553 - BRIDA PASACABLE D 12,7

More information

Quantity required : 1

5
P2R reference P2R reference
Maker reference Maker reference 000311070235

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

6
P2R reference P2R reference 63789
Maker reference Maker reference 004021000015

WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

7
P2R reference P2R reference 63765
Maker reference Maker reference 0024405

NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440

More information

Quantity required : 1

00G02501271 - VIS TETE CREUSE 10M150X45

8
P2R reference P2R reference 187296
Maker reference Maker reference 00G02501271

00G02501271 - VIS TETE CREUSE 10M150X45

More information

Quantity required : 1

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

9
P2R reference P2R reference 63895
Maker reference Maker reference 00D05910081

SCREW BTR (6X16) OEM PIAGGIO COMMON A LA RANGE-00D05910081

More information

Quantity required : 1

00G00303401 - SCTO.SILENTB.EJE BASCTE.DIESIS

10
P2R reference P2R reference 193778
Maker reference Maker reference 00G00303401

00G00303401 - SCTO.SILENTB.EJE BASCTE.DIESIS

More information

Quantity required : 1

00G00304401 - SILENTBLOCK

11
P2R reference P2R reference 193779
Maker reference Maker reference 00G00304401

00G00304401-SILENTBLOCK

More information

Quantity required : 1

00G01405301 - S-ENS.PONT FIX. PORTE-PAQ.

12
P2R reference P2R reference 187297
Maker reference Maker reference 00G01405301

00G01405301 - S-ENS.PONT FIX. PORTE-PAQ.

More information

Quantity required : 1

13
P2R reference P2R reference
Maker reference Maker reference 000000046155

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

14
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

00G03001271 - BOULON DE SERRAGE MOTEUR

15
P2R reference P2R reference 64066
Maker reference Maker reference 00G03001271

00G03001271-BOLT DE SERRAGE ENGINE

More information

Quantity required : 1

00G05700101 - BUTEE PHARE

16
P2R reference P2R reference 187298
Maker reference Maker reference 00G05700101

00G05700101 - BUTEE PHARE

More information

Quantity required : 1

WASHER DE SET OF STEERING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX-00008902630

17
P2R reference P2R reference 63672
Maker reference Maker reference 000089026305

WASHER DE SET OF STEERING OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 >/APRILIA SX, RX-00008902630

More information

Quantity required : 1

00G06500451 - RONDELLE COUSSINET TUBE DIRECT

18
P2R reference P2R reference 166413
Maker reference Maker reference 00G06500451

00G06500451 - RONDELLE COUSSINET TUBE DIRECT

More information

Quantity required : 1

00057000500 - COUSSINET 6005 25-47-12 2RS

19
P2R reference P2R reference 63741
Maker reference Maker reference 000570005005

00057000500 - COUSSINET 6005 25-47-12 2RS

More information

Quantity required : 1

00G06302401 - TUBE SEP. ROULEMENT DIRECTION

20
P2R reference P2R reference 64149
Maker reference Maker reference 00G06302401

00G06302401-TUBE SEP. BEARING STEERING

More information

Quantity required : 1
