Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

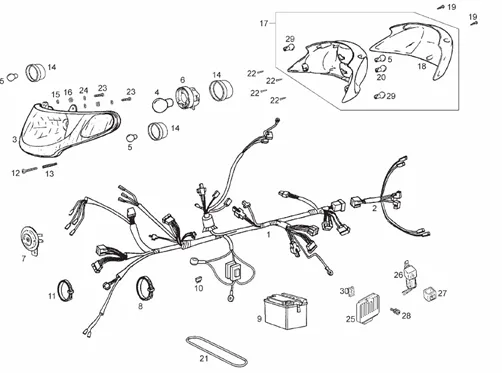

Circuit électrique : 7 CIRCUIT ÉLECTRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_7.png)
1 |
|
||||||
|
1 |
00G01042301 - ENSEMB.INSTALLATION ELECTRIQUE More informationQuantity required : 1 |
||||||
|
2 |
00G05703051 - FAISCEAU PHARE TEMOIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/7/0/img/63970.jpg)
3 |
HEADLAMP "PIAGGIO GENUINE PART" 50 DIESIS -00G01018011 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
5 |
AMPOULE/LAMPE 12V 10W BAU15S/RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-584332 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/3/1/img/72331.jpg)
6 |
DOOR AMPOULE DE HEADLAMP OEM PIAGGIO APRILIA 50-125 MX 2004 >, 50 MOJITO-AP8224609 More informationQuantity required : 1 |
||||||
|
7 |
00F01001311 - ZLAXON COMPLET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/9/9/img/63899.jpg)
8 |
HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/7/0/img/65970.jpg)
9 |
BATTERY 12V 4AH YB4L-B OEM PIAGGIO COMMON A LA RANGE-234390 More informationQuantity required : 1 |
||||||
|
10 |
00G01002911 - FUSIBLE More informationQuantity required : 1 |
||||||
|
11 |
ATTACHE CABLE RISLAN DEMONTABLE OEM PIAGGIO APRILIA RS 50 2006 > 2010, RX-SX 50 2006 > 2017/GILERA SMT 50 1998 > 2017-00D00900531 More informationQuantity required : 1 |
||||||
|
12 |
00012044000-SCREW More informationQuantity required : 1 |
||||||
|
13 |
00G02302501-R-SPRING REGLAGE HEADLAMP FRONT More informationQuantity required : 1 |
||||||
|
14 |
00G05701141-R-PROTECTEUR DOOR-LAMPE HEADLAMP More informationQuantity required : 1 |
||||||
|
15 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/8/1/img/63881.jpg)
16 |
RUBBER GUIDE-CABLE/RUBBER MOUNT OEM DERBI 50 SENDA 2000 > 2017/GILERA 50 SMT, RCR/APRILIA 50-125 SX, RX-00D01500021 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/9/6/3/img/63963.jpg)
17 |
TAILLIGHT- "PIAGGIO GENUINE PART" 50 DIESIS -00G01008321 More informationQuantity required : 1 |
||||||
|
18 |
00G01007341 - GLACE PHARE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
19 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/9/img/65799.jpg)
20 |
181747 - AMPOULE 12V 5W More informationQuantity required : 1 |
||||||
|
21 |
00G01802361 - SOUS-ENS.BRIDE FIX.BATTERIE More informationQuantity required : 1 |
||||||
|
22 |
00011031401-SCREW TARAUD 3, 6X14 BLACK CL89H More informationQuantity required : 1 |
||||||
|
23 |
00011031801-SCREW TARAUD 3, 6X18 BLACK CL89H More informationQuantity required : 1 |
||||||
|
24 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/9/4/4/img/67944.jpg)
25 |
REGULATEUR DE TENSION OEM PIAGGIO 50 TYPHOON, NRG 2018 >, VESPA PRIMAVERA 4T 2013 >, SPRINT 4T 2013 >/GILERA SMT 2018 >/DERBI SENDA 2018 >/APRILIA RS4, SX, RX 2018 >-641788 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/3/img/67203.jpg)
26 |
RELAIS STARTER MOTOR MAXI SCOOTER OEM PIAGGIO 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250-300 ATLANTIC (12V-80A)-58115R More informationQuantity required : 1 |
||||||
|
27 |
942577-BRACKET RELAIS More informationQuantity required : 1 |
||||||
|
28 |
00D05900091 - VIS More informationQuantity required : 1 |
||||||
|
29 |
AMPOULE/LAMPE 12V 10W RY10 ORANGE OEM PIAGGIO COMMON A LA RANGE-AP8127489 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
30 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 1 |
