Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

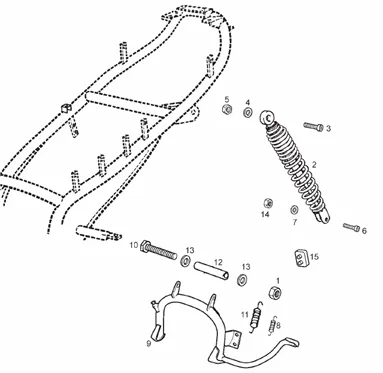

Suspensions - roues : 5 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_5.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
1 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
2 |
864419 - STOSSDAMPFER HINTEN More informationQuantity required : 1 |
||||||
|
3 |
00G01800901 - BOUL.SERRAGE SUPPORT AMORTISSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/9/img/63789.jpg)
4 |
WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001 More informationQuantity required : 1 |
||||||
|
5 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
|
6 |
00002105511-SCREW More informationQuantity required : 1 |
||||||
|
7 |
WASHER PLATE D10, 5 SPINDLE MOUNTING ENGINE OEM PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2000 > 2015/APRILIA 50 RS, SX, RX-00402100001 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/8/img/67208.jpg)
8 |
SPRING DE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581248 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/5/0/8/img/67508.jpg)
9 |
CENTRE STAND OEM PIAGGIO 50 FLY 4T 2006 > 2011, 125 FLY 2006 > 2011/APRILIA 50 SPORT-CITY ONE 4T 2008 > 2011, 125 SPORT-CITY ONE 2008 > 2011-601708 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/2/5/img/65625.jpg)
10 |
SCREW TH (10X130) DE CENTRE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-030115 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/9/img/67209.jpg)
11 |
SPRING DE CENTRE STAND OEM PIAGGIO COMMON A TOUTE LA RANGE-581249 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/1/img/67251.jpg)
12 |
SPACER DE STAND OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-582298 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/2/7/img/66127.jpg)
13 |
GASKET SHAFT OF STAND OEM PIAGGIO COMMON A LA RANGE-273754 More informationQuantity required : 1 |
||||||
|
14 |
NUT AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-002440 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/2/4/img/67224.jpg)
15 |
BUFFER/RUBBER DE STAND PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER-581560 More informationQuantity required : 1 |
