Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA) DERBI

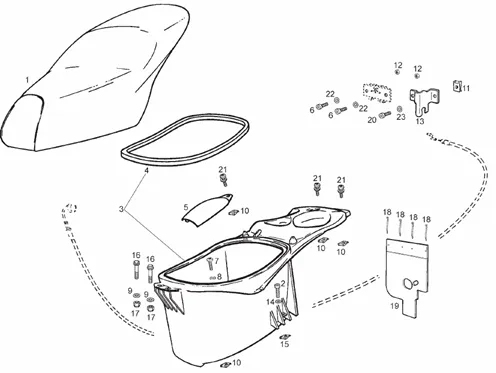

Châssis - parties plastiques - carrosseries : 4 SELLE - COMPART.P-CASQUE
Selle - Compart.p-casque
Search
863977 - CTO.SILLIN MARRON ATLANTIS 2T 07

1
P2R reference P2R reference 193781
Maker reference Maker reference 863977

863977 - CTO.SILLIN MARRON ATLANTIS 2T 07

More information

Quantity required : 1

00G00623017 - ENSEMBLE SELLE

1
P2R reference P2R reference 187437
Maker reference Maker reference 00G00623017

00G00623017-ENSEMBLE SEAT

More information

Quantity required : 1

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

2
P2R reference P2R reference 69497
Maker reference Maker reference 847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

More information

Quantity required : 1

00G06308721 - ENSEMB.PORTE-CASQUE AVEC PROF.

3
P2R reference P2R reference 187314
Maker reference Maker reference 00G06308721

00G06308721 - ENSEMB.PORTE-CASQUE AVEC PROF.

More information

Quantity required : 1

00G06301551 - PROFIL PORTE-CASQUE

4
P2R reference P2R reference 64148
Maker reference Maker reference 00G06301551

00G06301551-PROFIL DOOR-CASQUE

More information

Quantity required : 1

00G01802221 - COUVERCLE ACCES CARBURATEUR

5
P2R reference P2R reference 187315
Maker reference Maker reference 00G01802221

00G01802221 - COUVERCLE ACCES CARBURATEUR

More information

Quantity required : 1

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

6
P2R reference P2R reference 63614
Maker reference Maker reference 000020520515

SCREW BTR (5X15) OEM PIAGGIO COMMON A LA RANGE-00002052051

More information

Quantity required : 1

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

7
P2R reference P2R reference 63704
Maker reference Maker reference 000121616005

SCREW CRUCIFORME (6X16) MOUNTING AIR FILTER OEM PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2000 > 2017/APRILIA SX, RX,-00012161600

More information

Quantity required : 1

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

8
P2R reference P2R reference 187316
Maker reference Maker reference 00H00500212

00H00500212 - ROND.FIX.PORTE-CASQUE (NOIR)H.

More information

Quantity required : 1

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

9
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

More information

Quantity required : 1

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

10
P2R reference P2R reference 66009
Maker reference Maker reference 254485

NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

11
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 1

12
P2R reference P2R reference
Maker reference Maker reference 000000230515

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

13
P2R reference P2R reference 187317
Maker reference Maker reference 00G06801051

00G06801051 - BUTEE ARR.CABLE FERM.SELLE H.

More information

Quantity required : 1

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

14
P2R reference P2R reference 69480
Maker reference Maker reference 847181

WASHER PLATE (5X15X1) OEM PIAGGIO COMMON A LA RANGE-847181

More information

Quantity required : 1

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

15
P2R reference P2R reference 64119
Maker reference Maker reference 00G04401462

NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-00G04401462

More information

Quantity required : 1

00G03600991 - BOULON SERRAGE TURBINE H.(6X16

16
P2R reference P2R reference 64088
Maker reference Maker reference 00G03600991

00G03600991-BOLT SERRAGE TURBINE H. (6X16

More information

Quantity required : 1

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

17
P2R reference P2R reference 63590
Maker reference Maker reference 000000230605

NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-00000023060

More information

Quantity required : 1

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

18
P2R reference P2R reference 63899
Maker reference Maker reference 00F00900531

HOSE CLAMP NYLON TYPE RILSAN (290X4. 8) OEM PIAGGIO COMMON A LA RANGE-00F00900531

More information

Quantity required : 1

00G02200911 - PROTECTEUR CARBURATEUR

19
P2R reference P2R reference 187319
Maker reference Maker reference 00G02200911

00G02200911 - PROTECTEUR CARBURATEUR

More information

Quantity required : 1

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

20
P2R reference P2R reference 69497
Maker reference Maker reference 847227

SCREW BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-847227

More information

Quantity required : 1

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

21
P2R reference P2R reference 63923
Maker reference Maker reference 00F05900041

SCREW CRUCIFORME (6X16) MAINTIEN PANEL DE EDGE OU COQUE REAR OEM PIAGGIO APRILIA 50 RS 2006 > 2010-00F05900041

More information

Quantity required : 1

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

22
P2R reference P2R reference 63786
Maker reference Maker reference 004020600015

WASHER PLATE (6X12) OEM PIAGGIO COMMON A LA RANGE-00402060001

More information

Quantity required : 1

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

23
P2R reference P2R reference 64840
Maker reference Maker reference 00H03800722

WASHER PLATE (5, 3X15X1) OEM PIAGGIO COMMON A LA RANGE-00H03800722

More information

Quantity required : 1
