Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 4T E2 2007 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

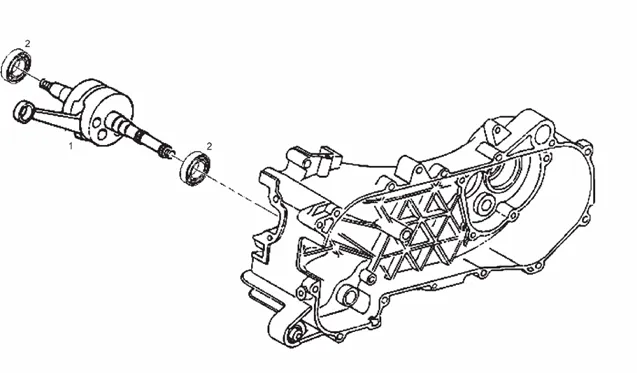

Moteur : 16 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1124/Atlantis_50_4T_E2_2007_(EMEA)_16.png)
Search
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/7/8/img/70978.jpg)
1 |
VILEBREQUIN OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-969428 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/5/0/img/70950.jpg)
2 |
BEARING (17X42X13) DE VILLEBREQUIN COTE IGNITION OEM PIAGGIO COMMON A LA RANGE SCOOTER 50 CC 4T-96925R More informationQuantity required : 1 |
