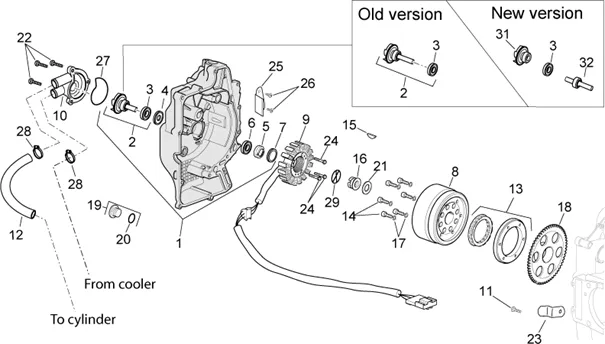

Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 29.58 ALLUMAGE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_29.58.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/1/4/img/70714.jpg)
1 |
CASING WATER PUMP COMPLETE OEM PIAGGIO 250 MP3, X8, X9, X-EVO, 250-300 X7, BEVERLY, VESPA GTS/APRILIA 250-300 ATLANTIC, SPORT-CITY, SCARABEO, SR-MAX/GILERA 250-300 NEXUS-8798315 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/8/5/img/69185.jpg)
2 |
SHAFT/SHAFT OF WATER PUMP OEM PIAGGIO 125 X9, BEVERLY, HEXAGON, VESPA GT 1998 > 2005, X8 2004 > 2006/GILERA 125 RUNNER 4T, DNA 1998 > 2005/APRILIA 125 ATLANTIC, SCARABEO 2003 >-841333 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/9/2/5/img/66925.jpg)
3 |
OIL SEAL OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-497486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/6/img/68876.jpg)
3 |
GASKET WATER PUMP OEM PIAGGIO 125-250-300-400-500 MP3, 125-250 X7, X8, X-EVO, BEVERLY, X10/GILERA 125-250-300-500 NEXUS/APRILIA 125-300 SR-MAX-82991R More informationQuantity required : 1 |
||||||
|
4 |
OIL SEAL OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 400-500 CC-497486 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/0/img/69230.jpg)
5 |
ENTRAINEUR OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842389 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/9/img/68679.jpg)
6 |
BEARING (28X8X9) SHAFT OF WATER PUMP OEM PIAGGIO 125-300 BEVERLY, VESPA GTS, 125 X9, X8, X10/APRILIA 125-250 SCARABEO, SPORT-CITY, ATLANTIC-82755R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/0/1/img/68801.jpg)
7 |
GASKET OF WATER PUMP (20X30X5) OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-82897R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/5/img/67175.jpg)
8 |
IGNITION ROTOR "PIAGGIO GENUINE PART" 250 X9, BEVERLY/APRILIA 125-250 ATLANTIC -58049R More informationQuantity required : 1 |
||||||
9 |
IGNITION OEM PIAGGIO 250 X9, BEVERLY-58048R More informationQuantity required : 1 |
||||||
|
10 |
Couvercle pompe eau |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/8/5/img/109085.jpg)
11 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 1 |
||||||
|
11 |
SCREW CRUCIFORME (6X14) OEM PIAGGIO COMMON A LA RANGE-1A003108 More informationQuantity required : 1 |
||||||
|
12 |
840468 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/8/6/img/70686.jpg)
12 |
HOSE/HOSE WATER PUMP CYLINDER OEM PIAGGIO 250-300 MP3, GTS, X7, X8, X9-878626 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/5/3/img/149153.jpg)
13 |
WHEEL LIBRE DE STARTER MOTOR (6 TROUS) OEM PIAGGIO 300-350-400-500 MP3, BEVERLY, 250-300 VESPA GTS, 400 X8, X-EVO, 500 X9, X10/GILERA 500 FUOCO, NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-1A0093875 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/6/img/70656.jpg)
14 |
SCREW BTR (6X24) OEM PIAGGIO COMMON A LA RANGE-877289 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/6/7/4/img/63674.jpg)
15 |
CLAVETTE IGNITION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-000097 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/5/3/img/68853.jpg)
16 |
NUT ROTOR IGNITION OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-82952R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/9/img/66579.jpg)
17 |
WASHER GROWER (6) OEM PIAGGIO COMMON A LA RANGE-479515 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/6/6/img/68666.jpg)
18 |
COURONNE DE STARTER MOTOR OEM PIAGGIO 125-250-300-400-500 MP3, BEVERLY, 125-250-300 VESPA GTS, X7, 125-250 X8, X9, X-EVO/GILERA 125-250-300-500 NEXUS/APRILIA 300-400-500 ATLANTIC, SCARABEO-82737R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/1/0/img/68810.jpg)
19 |
CAP CONTROLE DE CALLAGE ON CASING WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER-8290405 More informationQuantity required : 1 |
||||||
|
20 |
Joint |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/2/9/img/69229.jpg)
21 |
WASHER PLATE (16X30X2) OEM PIAGGIO COMMON A LA RANGE-842385 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/0/img/68770.jpg)
22 |
SCREW CRUCIFORME (5X22) OEM PIAGGIO COMMON A LA RANGE-828662 More informationQuantity required : 3 |
||||||
|
23 |
848724 - PALQUE More informationQuantity required : 1 |
||||||
|
24 |
SCREW BTR (6X30) OEM PIAGGIO COMMON A LA RANGE-122637 More informationQuantity required : 3 |
||||||
|
25 |
841659 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
26 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
|
26 |
SCREW CRUCIFORME (5X10) OEM PIAGGIO COMMON A LA RANGE-1A003111 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/7/1/img/66671.jpg)
27 |
O RING OF WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-485080 More informationQuantity required : 1 |
||||||
|
28 |
Collier serr. Tube |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/3/1/img/69231.jpg)
29 |
SPRING ENTRAINEMENT WATER PUMP OEM PIAGGIO COMMON A LA RANGE MAXISCOOTEUR 125-250-300-842390 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/2/6/img/69326.jpg)
31 |
TURBINE OF PUMP A WATER OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300-844730 More informationQuantity required : 1 |
||||||
|
32 |
Arbre pompe à eau |
