Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

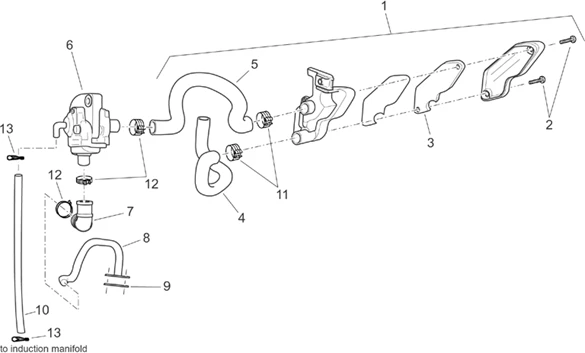

Chassis : 28.28 AIR SECONDAIRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_28.28.PNG)
1 |
840473 - FILTRE A AIR More informationQuantity required : 1 |
||||||
|
2 |
Vis taraud |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/8/img/69148.jpg)
3 |
840476 - FILTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/1/img/69281.jpg)
4 |
TUBE RECYCLAGE DE THROTTLE OEM COMMON A LA RANGE PIAGGIO-843400 More informationQuantity required : 1 |
||||||
|
5 |
841558-HOSE AIR FILTER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
6 |
VOLET/VALVE " S. A. S. " OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250 CC-82996R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/0/img/69160.jpg)
7 |
SLEEVE FITTING AIR OEM PIAGGIO COMMON A LA RANGE-840587 More informationQuantity required : 1 |
||||||
|
8 |
840585-TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
9 |
GASKET CANALISATION RECYCLAGE DES THROTTLE OEM PIAGGIO COMMON A LA RANGE SCOOTER 50CC 4T/MAXI SCOOTER 125-832059 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
10 |
HOSE/FUEL HOSE (5. 5X10) OEM APRILIA-MOTO GUZZI COMMON A LA RANGE-896544 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
11 |
CLAMP SERRAGE HOSE (22. 6) OEM PIAGGIO COMMON A LA RANGE-CM001905 More informationQuantity required : 2 |
||||||
|
12 |
Collier serr. Tube |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
13 |
HOSE CLAMP HOSE (5X8) OEM PIAGGIO COMMON A LA RANGE-CM002901 More informationQuantity required : 2 |
