Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

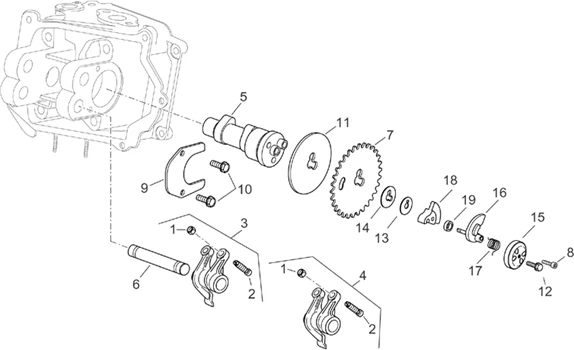

Moteur : 29.45 ARBRE À CAMES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/7/img/66667.jpg)
1 |
NUT DE CULBUTEUR (M6X0. 75) OEM PIAGGIO COMMON A LA RANGE-484819 More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/3/1/img/68731.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -82817R More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/2/img/72782.jpg)
3 |
EXHAUST ROCKER "PIAGGIO GENUINE PART" 125-250-300 MP3 2007>, VESPA GTS 2007>, 125 X-EVO 2007>, X9 2003>, X10 2012>/GILERA 125-250-300 NEXUS/APRILIA 125 ATLANTIC -B0184845 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/8/1/img/72781.jpg)
4 |
INTAKE ROCKER "PIAGGIO GENUINE PART" 125 MP3 2006>2013, MP3 300 2009>2015, X10 2012>2013, X EVO 2007>2016 -B0184835 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/3/img/69543.jpg)
5 |
8477915 - AXE DU CULBUTEURS More informationQuantity required : 1 |
|||||||||
5 |
CAMSHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE MAXISCOOTER 200CC RANGE -8459345 More informationQuantity required : 1 |
|||||||||
|
5 |
Arbre à cames |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/1/img/66711.jpg)
6 |
SPINDLE DU CULBUTEURS OEM PIAGGIO 125 MP3, X7, X8, X9, X-EVO, VESPA GTS/GILERA 125 NEXUS/APRILIA 125 ATLANTIC-486343 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/6/9/img/70669.jpg)
7 |
877771 - COURONNE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/6/7/img/66367.jpg)
8 |
SCREW FLANGE TH (6X35) OEM PIAGGIO COMMON A LA RANGE-414838 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/8/img/127168.jpg)
8 |
SCREW BTR (5X25) WITH BRAKE NET THREAD OEM PIAGGIO COMMON A LA RANGE-1A003115 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/6/5/9/img/70659.jpg)
9 |
SHEET METAL CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-877309 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/5/img/66655.jpg)
10 |
SCREW FLANGE TH (5X12) OEM PIAGGIO COMMON A LA RANGE-484123 More informationQuantity required : 2 |
|||||||||
|
11 |
Plaque |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/6/img/127166.jpg)
12 |
SCREW BTR (5X30) OEM PIAGGIO COMMON A LA RANGE-1A003053 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/2/img/65642.jpg)
12 |
SCREW TH (6X22) OEM PIAGGIO COMMON A LA RANGE-031091 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/1/8/img/68918.jpg)
13 |
WASHER PLATE DE BALANCIER OEM PIAGGIO 125 2013 <-830446 More informationQuantity required : 1 |
|||||||||
|
14 |
Rondelle plate |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/3/6/img/70736.jpg)
15 |
880651 - DECOMPRESSION CHAMBRE More informationQuantity required : 1 |
|||||||||
|
16 |
8291395-MASSELOTTE * More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/8/img/66718.jpg)
17 |
SPRING DECOMPRESSION CAMSHAFT OEM PIAGGIO COMMON A LA RANGE-486974 More informationQuantity required : 1 |
|||||||||
|
18 |
486331 - CONTREPOIDS More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/0/img/66760.jpg)
19 |
GASKET GROUP BALANCIER OEM PIAGGIO COMMON A LA RANGE-487833 More informationQuantity required : 1 |
|||||||||
