Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

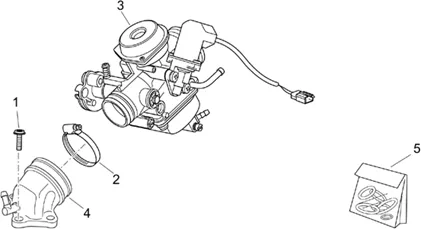

Chassis : 28.24 CARBURATEUR I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_28.24.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
1 |
SCREW FLANGE TH (6X20) OEM PIAGGIO COMMON A LA RANGE-018639 More informationQuantity required : 3 |
||||||
1 |
Vis bride |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/3/3/2/img/75332.jpg)
2 |
CLAMP SERRAGE TUBE 32-50 OEM PIAGGIO COMMON A LA RANGE-1A000833 More informationQuantity required : 1 |
||||||
|
3 |
CM116017 - CARBURATEUR More informationQuantity required : 1 |
||||||
|
3 |
CM128214-CARBURETTOR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/4/1/img/73141.jpg)
3 |
CARBURETTOR OEM PIAGGIO 125 BEVERLY, X9, SUPER HEXAGON/APRILIA 125-250 ATLANTIC, SPORT-CITY, SCARABEO/GILERA 125 RUNNER, DNA-CM128204 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/2/img/72712.jpg)
4 |
FITTING INTAKE (DEUX RACCORDS LAITON) OEM PIAGGIO 125-250 BEVERLY, X8, X9, VESPA GTS/GILERA 125 RUNNER/APRILIA 125-250 ATLANTIC, SCARABEO-B016579 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/6/img/66666.jpg)
4 |
FITTING/MANIFOLD INTAKE OEM PIAGGIO 125 BEVERLY, X9, HEXAGON/APRILIA 125-250 ATLANTIC 2003 > 2006/GILERA 125 RUNNER 4T-484748 More informationQuantity required : 1 |
||||||
|
5 |
494921 - JEU DE JOINTS More informationQuantity required : 1 |
