Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

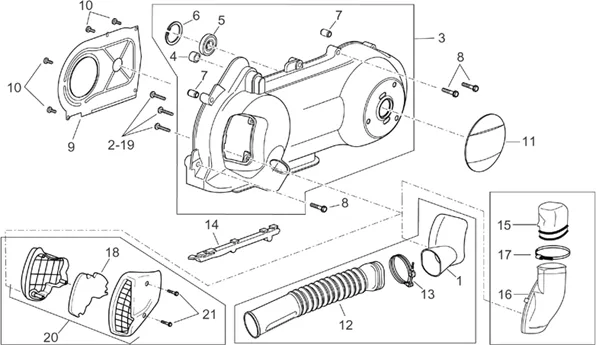

Moteur : 29.56 COUVERCLE VARIATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_29.56.PNG)
1 |
Couvercle |
||||||
|
2 |
Vis taraud |
||||||
|
3 |
8466855 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/2/img/69142.jpg)
3 |
CASING DE TRANSMISSION OEM PIAGGIO APRILIA 125-250 ATLANTIC, 125 MOJITO 2003 > 2007-8403455 More informationQuantity required : 1 |
||||||
|
3 |
8418155-COVER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/1/7/img/66417.jpg)
4 |
BUSH/BUSH BRONZE 8X12X8 OEM PIAGGIO COMMON A LA RANGE SCOOTER ET MAXI SCOOTER-431860 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/1/img/66571.jpg)
5 |
BEARING (15X35X11) OEM PIAGGIO COMMON A TOUTE LA RANGE MAXI SCOOTER 125-250-300-4789853 More informationQuantity required : 1 |
||||||
|
6 |
Anneau élastique |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
7 |
BUSH DE CENTRAGE (9, 5X15) CASING OEM PIAGGIO COMMON ALA RANGE-B015956 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/5/img/72725.jpg)
8 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A TOUTE LA RANGE-B016792 More informationQuantity required : 10 |
||||||
|
9 |
834266-DIAPHRAGME FOR AIR CHAUD More informationQuantity required : 1 |
||||||
|
9 |
DIAPHRAGME FOR AIR CHAUD 125CC-873682 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/7/6/img/66376.jpg)
10 |
SCREW CRUCIFORME (5X12) OEM PIAGGIO COMMON A LA RANGE-430264 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/2/9/6/img/73296.jpg)
11 |
COVER ROND " APRILIA " DE CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125 CC APRILIA-CM155103 More informationQuantity required : 1 |
||||||
|
12 |
AP8178043 - PRESA ARIA VARIATORE More informationQuantity required : 1 |
||||||
|
13 |
AP8220104-CLAMP More informationQuantity required : 1 |
||||||
|
14 |
483783-GASKET More informationQuantity required : 1 |
||||||
|
15 |
AP8178043 - PRESA ARIA VARIATORE More informationQuantity required : 1 |
||||||
|
16 |
Convoyeur air |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/4/img/71394.jpg)
17 |
HOSE CLAMP NYLON TYPE RILSAN 4, 5X180MM OEM PIAGGIO COMMON A LA RANGE-AP8120416 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/1/3/img/69213.jpg)
18 |
AIR FILTER CASING DE TRANSMISSION OEM PIAGGIO COMMON A LA RANGE MAXI SCOOTER 125-250-300 CC-842093 More informationQuantity required : 1 |
||||||
|
19 |
Vis |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/2/8/img/67628.jpg)
20 |
620553 - COUVERCLE More informationQuantity required : 1 |
||||||
|
21 |
Vis taraud |
