Vehicle Exploded View - APRILIA ATLANTIC 200 2003-2006
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

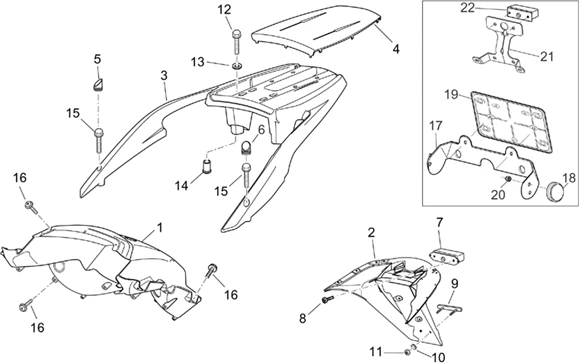

Chassis : 28.14 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/551/Atlantic_200_2003-2006_28.14.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/6/3/3/img/51633.jpg)
1 |
REAR FAIRING "PIAGGIO GENUINE PART" APRILIA 125-250 ATLANTIC BRONZE -AP8158387 More informationQuantity required : 1 |
||||||
1 |
AP8179001 - COFANO POSTERIORE GRIGIO ASH More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/9/3/8/img/47938.jpg)
2 |
MUD FLAP REAR OEM PIAGGIO APRILIA 125-250-300 ATLANTIC 2003 > 2012-AP8126961 More informationQuantity required : 1 |
||||||
|
3 |
AP8179722-MANIGLIONE PASSEGGERO * More informationQuantity required : 1 |
||||||
|
4 |
AP8158389 - COUV. PORTE-BAG., ROUGE; More informationQuantity required : 1 |
||||||
|
4 |
AP8168522 - COUV. PORTE-BAG., BLEU; More informationQuantity required : 1 |
||||||
|
4 |
AP8168533 - COUV. PORTE-BAG., GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8168544 - COUV. PORTE-BAG., VERT; More informationQuantity required : 1 |
||||||
|
4 |
AP8168726 - COUV. PORTE-BAG., GRIS; More informationQuantity required : 1 |
||||||
|
4 |
AP8178379 - COPERCHIO PORTAOG.V.GRIGIO M. More informationQuantity required : 1 |
||||||
|
4 |
AP8178388 - COPERCHIO PORTAOG.V.AZZURRO C. More informationQuantity required : 1 |
||||||
|
4 |
AP8179002 - COPERCHIO PORTAP.V.GRIGIO ASH More informationQuantity required : 1 |
||||||
|
5 |
AP8168046-CAP G More informationQuantity required : 1 |
||||||
|
6 |
AP8168047-CAP G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/0/5/9/img/48059.jpg)
7 |
LAMP DE PLATE IMMATRICULATION OEM PIAGGIO APRILIA 125-250-300 ATLANTIC 2012 <-AP8127261 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
8 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/6/8/img/71568.jpg)
9 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8124718 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/6/img/71826.jpg)
10 |
WASHER 4X16 OEM PIAGGIO COMMON A TOUTE LA RANGE-AP8150159 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
11 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/5/img/71955.jpg)
12 |
SCREW FLANGE TH (8X60) OEM PIAGGIO COMMON A LA RANGE-AP8152293 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
13 |
WASHER PLATE (8. 5X24X2) OEM PIAGGIO COMMON A LA RANGE-AP8150018 More informationQuantity required : 2 |
||||||
|
14 |
AP8121635 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/7/6/img/50976.jpg)
15 |
SCREW FLANGE TH (6X40) OEM PIAGGIO COMMON A LA RANGE-AP8152283 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
16 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 6 |
||||||
|
17 |
AP8258253-AR. BRACKET CATADIOPTRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/5/img/72325.jpg)
18 |
CATADIOPTRE REAR OEM PIAGGIO COMMON A LA RANGE-AP8224164 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/1/img/71801.jpg)
19 |
BRACKET DE PLATE IMMATRICULATION OEM PIAGGIO COMMON A LA RANGE MOTO-GUZZI ET MAXI SCOOTER APRILIA-AP8149034 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
20 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M5) OEM PIAGGIO COMMON A LA RANGE-AP81523066 More informationQuantity required : 1 |
||||||
|
21 |
AP8258253-AR. BRACKET CATADIOPTRE More informationQuantity required : 1 |
||||||
|
22 |
REGISTRATION PLATE LIGHT "PIAGGIO GENUINE PART" APRILIA 125-250 RS, 1000 CAPONORD, 125-250-400-500 ATLANTIC/MOTO-GUZZI 850-1200 BREVA, NORGE -AP8212702- More informationQuantity required : 1 |
