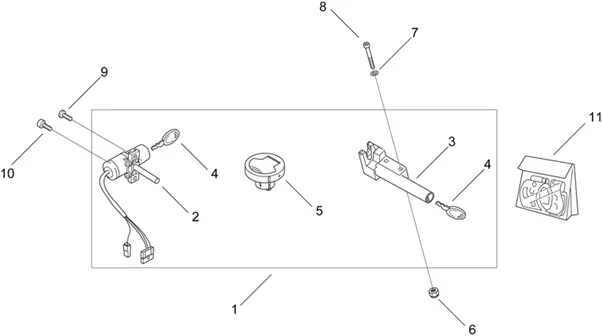

Chassis : 28.29 DECALCO ET KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.29.PNG)
1 |
Kit serrure |
||||||
|
2 |
AP8224014 - BLOC DEMARREUR-BLOC; More informationQuantity required : 1 |
||||||
|
3 |
AP8201564-LOCK SEAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
4 |
EBAUCHE DE CLE FRAISEE WITHOUT TRANSPONDEUR OEM APRILIA COMMON A LA RANGE-AP8104613 More informationQuantity required : 1 |
||||||
|
5 |
AP8202031 - BOUCHON ESSENCE, NOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
6 |
NUT AUTOBLOQUANT/NYLSTOP (M6) OEM PIAGGIO COMMON A LA RANGE-AP8150430 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/7/img/71807.jpg)
7 |
WASHER PLATE (6, 4X12, 5) OEM PIAGGIO COMMON A LA RANGE-AP8150014 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/6/img/71816.jpg)
8 |
SCREW BTR (6X55) OEM PIAGGIO COMMON A LA RANGE-AP8150045 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
9 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 1 |
||||||
|
10 |
AP8152330-SCREW A ARRACHEMENT More informationQuantity required : 1 |
||||||
|
11 |
Décalco série; |
||||||
|
11 |
AP8257092 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8257724 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
AP8257894 - DECALCO SERIE; More informationQuantity required : 1 |
||||||
|
11 |
Décalco série; |
