Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

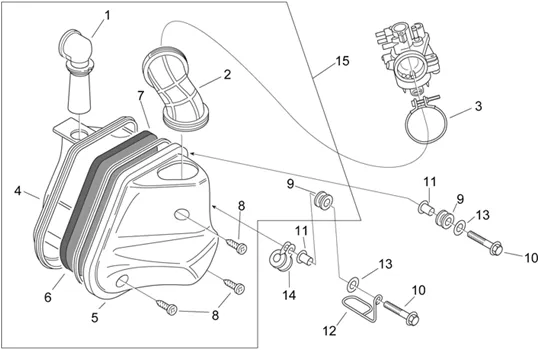

Chassis : 28.22 CORPS FILTRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.22.PNG)
1 |
AP8220467-SLEEVE D'ASPIRATION More informationQuantity required : 1 |
||||||
|
1 |
AP8220480-HOSE D'ADMISSION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/4/img/56864.jpg)
2 |
AP8220364 - MANCHON D'ASPIRATION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/9/1/img/55391.jpg)
3 |
CLAMP SLEEVE AIR (42/50) OEM PIAGGIO COMMON A LA RANGE-AP8201799 More informationQuantity required : 1 |
||||||
|
4 |
Corps filtre; |
||||||
|
5 |
Couvercle corps filtre; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/8/7/5/2/img/168752.JPG)
6 |
FILTER AIR OEM APRILIA SR 50 1994-2001-AP82016830P More informationQuantity required : 1 |
||||||
|
7 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
8 |
SCREW PARKER (5, 5X22) CRUCIFORME OEM PIAGGIO COMMON A LA RANGE-AP8150425 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/6/9/img/56869.jpg)
9 |
RUBBER OEM PIAGGIO COMMON A LA RANGE-AP8220370 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
10 |
SCREW FLANGE TH (6X30) OEM PIAGGIO COMMON A LA RANGE-AP8152281 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/9/2/8/img/46928.jpg)
11 |
BUSH EN T OEM PIAGGIO COMMON A LA RANGE-AP8121725 More informationQuantity required : 2 |
||||||
|
12 |
AP8221172-GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/8/img/71808.jpg)
13 |
WASHER PLATE (6. 6X18X1. 6) OEM PIAGGIO COMMON A LA RANGE-AP8150015 More informationQuantity required : 2 |
||||||
|
14 |
AP8134167-PLATE HOSE BRAKE More informationQuantity required : 1 |
||||||
|
15 |
Caisse filtre complète; |
||||||
|
15 |
Caisse filtre complète; |
