Vehicle Exploded View - APRILIA AREA 51 50 1998-2000
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

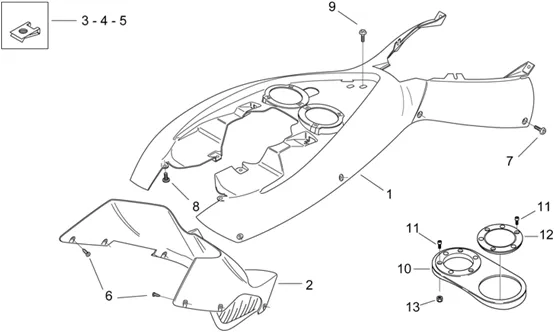

Chassis : 28.10 CARROSSERIE CENTRALE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.10.PNG)
1 |
AP8239159 - FERMETURE TUNN. SUP. BL.; More informationQuantity required : 1 |
||||||
|
1 |
AP8249357 - FERMETURE TUNN. SUP. NO.; More informationQuantity required : 1 |
||||||
|
2 |
Bavolet AV, noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
NUT SHEET METAL (M5) OEM PIAGGIO COMMON A LA RANGE-AP8102375 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
NUT SHEET METAL (M6) OEM PIAGGIO COMMON A LA RANGE-254485 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/7/img/71177.jpg)
5 |
NUT SHEET METAL (M4) OEM PIAGGIO COMMON A LA RANGE-AP8102381 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
6 |
SCREW CRUCIFORME (3. 9X14) TARAUD FAIRING INOX OEM PIAGGIO COMMON A TOUTE LA RANGE MOTO-AP8150413 More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
7 |
SCREW FLANGE BTR (5X16) OEM PIAGGIO COMMON A LA RANGE-AP8152298 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
8 |
SCREW BTR HEAD BOMBEE (5X9) OEM PIAGGIO COMMON A LA RANGE MOTO-AP8152339 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/2/img/71972.jpg)
9 |
SCREW FLANGE BTR (5X20) OEM PIAGGIO COMMON A LA RANGE MOTO ET MAXI SCOOTER APRILIA-AP8152338 More informationQuantity required : 1 |
||||||
|
10 |
Bride bouchon ess., bleu; |
||||||
|
10 |
Bride bouchon ess., noir; |
||||||
|
11 |
AP8150416-SCREW More informationQuantity required : 6 |
||||||
|
12 |
Abatt.sonde essence bleu cl.; |
||||||
|
12 |
Abattant sonde essence noir; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/9/img/71839.jpg)
13 |
NUT AUTOBLOQUANT/NYLSTOP (M4) OEM PIAGGIO COMMON A LA RANGE-AP8150204 More informationQuantity required : 3 |
