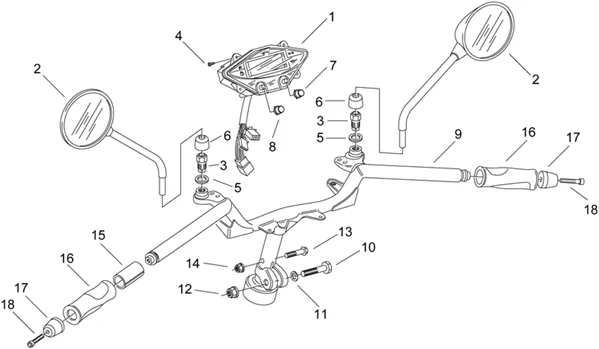

Chassis : 28.17 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/237/Area_51_1998-2000_28.17.PNG)
1 |
Tabl. bord numérique |
||||||
|
1 |
Tabl. bord numérique |
||||||
|
1 |
Tabl. bord numérique |
||||||
|
1 |
Tabl. bord numérique |
||||||
|
1 |
Tabl. bord numérique; |
||||||
|
2 |
Miroir rétroviseur d/g |
||||||
|
3 |
AP8221256 - ECROU AVEC PINCE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
4 |
SCREW CRUCIFORME (2. 9X12) TARAUD FOR PLASTIQUE INOX OEM PIAGGIO COMMON A LA RANGE-AP8150421 More informationQuantity required : 4 |
||||||
|
5 |
AP8221279 - ROND. FIX. RETROV. More informationQuantity required : 2 |
||||||
|
6 |
Caoutchouc miroir dte/gche; |
||||||
|
7 |
Pous. 'MODE' tab. de bord; |
||||||
|
8 |
Pous. 'SET' tab. de bord; |
||||||
|
9 |
AP8218320 - GUIDON AVEC CATAPHORESE; More informationQuantity required : 1 |
||||||
|
10 |
AP8150323-SCREW More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
11 |
WASHER PLATE (10, 5X21X2) OEM PIAGGIO COMMON A LA RANGE-AP8150020 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
12 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M10) OEM PIAGGIO COMMON A LA RANGE-AP8152301 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/2/img/71952.jpg)
13 |
SCREW FLANGE TH (8X40) OEM PIAGGIO COMMON A LA RANGE-AP8152290 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
14 |
NUT FLANGE AUTOBLOQUANT/NYLSTOP (M8) OEM PIAGGIO COMMON A LA RANGE-AP8152300 More informationQuantity required : 1 |
||||||
|
15 |
Protection clignotants g.; |
||||||
|
16 |
AP8218412 - COUPLE MANETTES, NOIR/GRIS; More informationQuantity required : 1 |
||||||
|
17 |
AP8102717-MASSE ANTIVIBRATILE HANDLEBAR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/2/img/71852.jpg)
18 |
SCREW BTR (6X35) OEM PIAGGIO COMMON A LA RANGE-AP8150285 More informationQuantity required : 2 |
