Vehicle Exploded View - APRILIA AREA 51 50 1998-2000 APRILIA

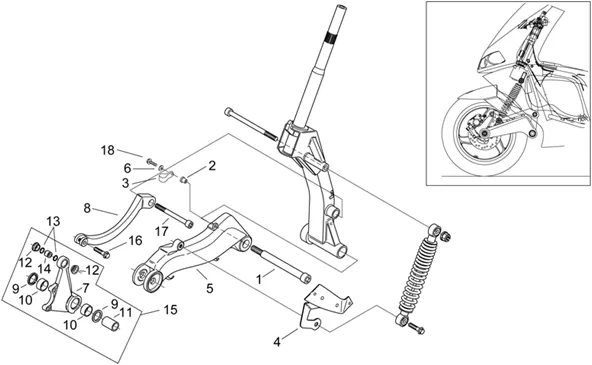

Chassis : 28.05 SUSPENSION AVANT I
Suspension avant i
Search
Pivot

1
P2R reference P2R reference
Maker reference Maker reference AP8203836

Pivot

BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075

2
P2R reference P2R reference 71432
Maker reference Maker reference AP8121075

BUSH EN T (6. 1X10X5. 5) OEM PIAGGIO COMMON A LA RANGE-AP8121075

More information

Quantity required : 1

CLAMP DE HOSE OIL OEM PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD-AP8102731

3
P2R reference P2R reference 45214
Maker reference Maker reference AP8102731

CLAMP DE HOSE OIL OEM PIAGGIO APRILIA 1000 RSV-2, TUONO, FUTURA, FALCO, CAPONORD-AP8102731

More information

Quantity required : 1

Support gche garde-boue;

4
P2R reference P2R reference
Maker reference Maker reference AP8234141

Support gche garde-boue;

Bras four. hor., gris;

5
P2R reference P2R reference
Maker reference Maker reference AP8203941

Bras four. hor., gris;

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

6
P2R reference P2R reference 71806
Maker reference Maker reference AP8150013

WASHER PLATE (5. 5X15X1. 6) OEM PIAGGIO COMMU A LA RANGE-AP8150013

More information

Quantity required : 1

AP8203869 - ATTACHE PINCE FREIN CPL.

7
P2R reference P2R reference 55608
Maker reference Maker reference AP8203869

AP8203869 - ATTACHE PINCE FREIN CPL.

More information

Quantity required : 1

Tirant cataph.

8
P2R reference P2R reference
Maker reference Maker reference AP8203833

Tirant cataph.

Pare-poussière

9
P2R reference P2R reference
Maker reference Maker reference AP8203830

Pare-poussière

Douille autolubrif.

10
P2R reference P2R reference
Maker reference Maker reference AP8203871

Douille autolubrif.

AP8203831 - DOUILLE CEMENTEE

11
P2R reference P2R reference 55600
Maker reference Maker reference AP8203831

AP8203831 - DOUILLE CEMENTEE

More information

Quantity required : 1

Douille en plastique

12
P2R reference P2R reference
Maker reference Maker reference AP8203828

Douille en plastique

Joint torique

13
P2R reference P2R reference
Maker reference Maker reference AP8203870

Joint torique

Douille

14
P2R reference P2R reference
Maker reference Maker reference AP8203829

Douille

AP8203869 - ATTACHE PINCE FREIN CPL.

15
P2R reference P2R reference 55608
Maker reference Maker reference AP8203869

AP8203869 - ATTACHE PINCE FREIN CPL.

More information

Quantity required : 1

SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289

16
P2R reference P2R reference 71951
Maker reference Maker reference AP8152289

SCREW FLANGE TH (8X35) OEM PIAGGIO COMMON A LA RANGE-AP8152289

More information

Quantity required : 1

AP8150092 - VIS

17
P2R reference P2R reference 50835
Maker reference Maker reference AP8150092

AP8150092 - VIS

More information

Quantity required : 1

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

18
P2R reference P2R reference 69697
Maker reference Maker reference 855799

SCREW FLANGE TH (5X0, 8 L. 28) OEM PIAGGIO COMMON A LA RANGE-855799

More information

Quantity required : 1
